1.5mm HDPE Composite Geomembrane Liner for Waterproof Project

Composite Geomembrane liner for artifical turf sportfield to protect grass system from subgrade moisture variations

What is GEOCOMPOSITE MEMBRANE LINERS?

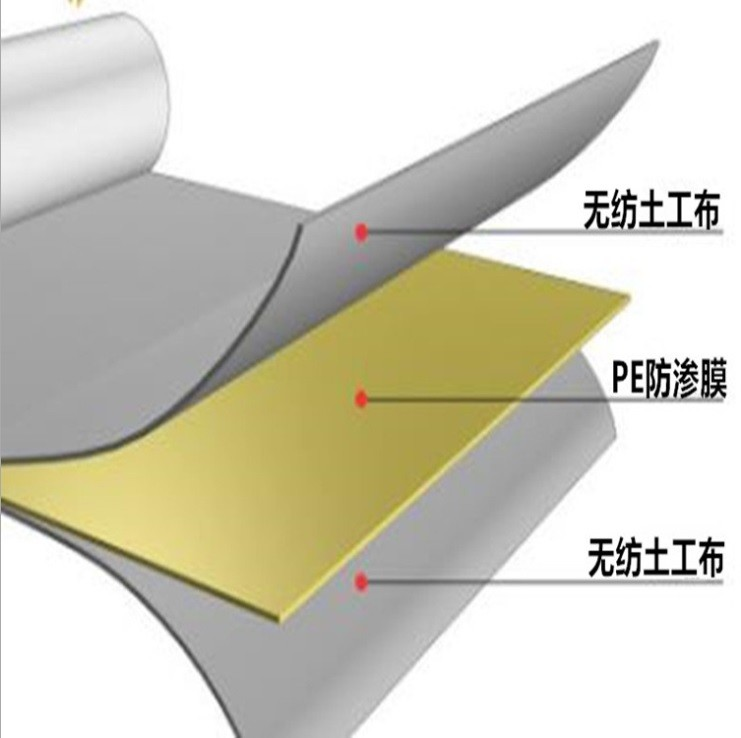

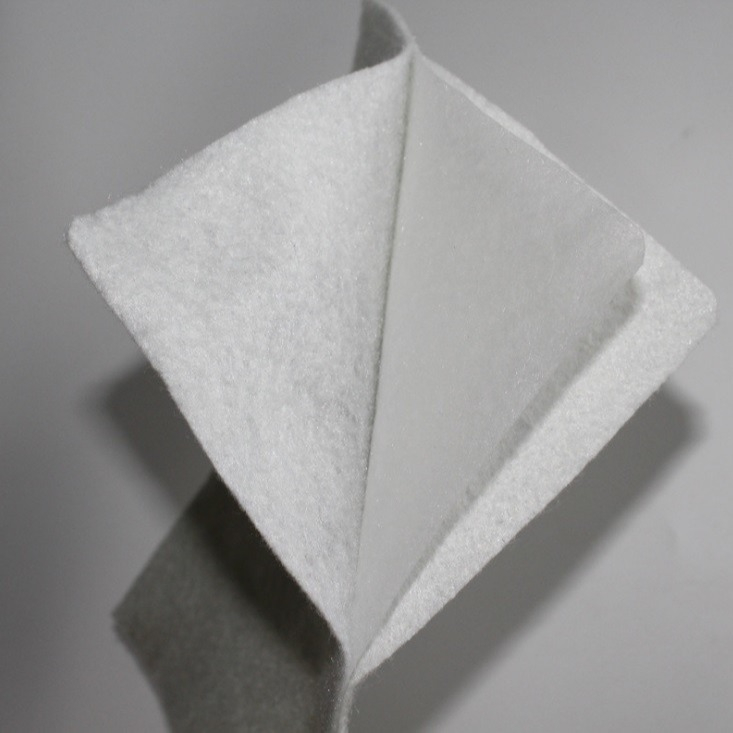

PioneerTEX Composite Geomembrane liner consists of either a 250um or 500um polyethylene PE geomebrane liner between two layers of industry leading PET Filament nonwoven geotextile, which provides a cushion effect to the HDPE geomembrane, protecting it from damage from angular subgrade materials and aggregates.PioneerTEX Composite Geomembrane is easy to install with use of the Welding machine.

Composite Geomembrane FUNCTION:

Drainage

EnduraSeal allows water to flow within the plane of the geocomposite, allowing the dissipation of pore water pressure which can have a detrimental effect on engineering structures.

Separation

EnduraSeal provides separation between the subgrade and the drainage aggregate layer, preventing migration of subgrade materials into the aggregate layer above - maintaining the performance of the individual materials.

Cushioning

EnduraSeal prevents damage to geomembrane by limiting deformation and puncturing potential.

Barrier

EnduraSeal prevents water from entering the synthetic grass system from the subgrade - preventing moisture variations which can lead to differential settlement.

ADVANTAGES

• Easy to Install - Geocomposite Geomembrane can easily be made waterproof at overlaps and joins with use of the PioneerTEX KS glue laminating system. And it doesn't require any specialist skills or expertise to operate.

•


• Custom grades to suit site conditions - For large specialty applications we can produce Composite Geomembrane in a range of geomembrane and geotextile grade combinations to suit your site conditions and aggregate requirements.

•


• Design and installation support - PioneerTEX composie geomembrane is supported by technical assistance from our engineers. Installation equipment is also available to help ensure efficient and correct installation.

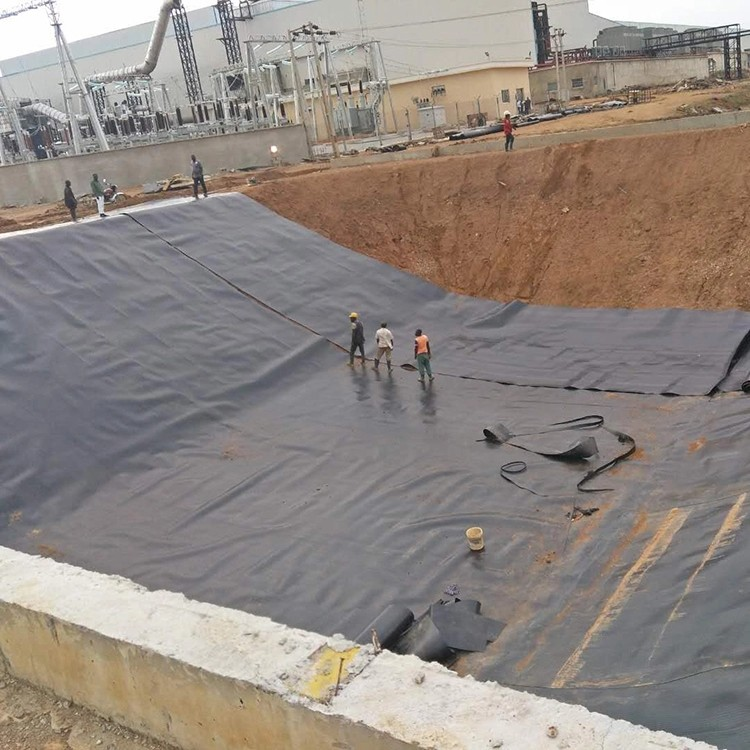

PioneerTEX Composite Geomembrane Installation:

Placement procedures for composite geomembrane should be in accordance with the project specifications.

This will include compliance with stripping, grubbing and final trim, grading requirements, cover material specifications, lift thicknesses and equipment requirements.

Other considerations such as placement in wind should be addressed in construction or site specific specifications.

Performance considerations such as removal of wrinkles and folds or pre-tensioning the geocomposite should also be addressed as specified.

Overlaps should be joined using the PioneerTEX glue laminating system with the supplied glue or Welding Machine.

Other application of PioneerTEX Composite Geomembrane:

Aquaculture:

Using the geomembrane anti-seepage feature;

Geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.

Landfill:

HDPE geomembrane is the most widely used in landfill anti-seepage engineering material,

The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

HDPE geomembrane structure with smooth surface and textured surface, suitable for different sites.

Water Treatment System:

Geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;

and a series of water treatment systems.

Mining:

Geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank,

storage area, the bottom line of the tailings seepage control, etc
