| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | PIONEERTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | NWB |
| Minimum Order Quantity: | 1000 Bag/Bags |
| Price: | $0.70 - $10.00 / Bag |
| Packaging Details: | EXPORTING STANDARD PP WOVEN FABRIC OUTSIDE |
| Supply Ability: | 1000 Bag/Bags per Week |
| Quantity: | |
|---|---|
| Geotextile Type: | Non-Woven Geotextiles | Color: | BLACK,GREY OR GREEN |
|---|---|---|---|
| Product Name: | NONWOVEN SILT BAG | Keyword: | SILT BAG |
| Weight: | 250-300GSM | Size: | 2.1*1.52m/1.7*1.25m |
| Function: | High Water Permeability | Feature: | UV-protection Treatment |
| Technology: | Non Woven Needle Punched Or Composite | MOQ: | 1000pcs |
| Port: | NANJING PORT OR SHANGHAI PORT | ||
| High Light: | Needle Punch Geotextile,Non Woven Silt Bags,Non Woven Geotextile fabric | ||

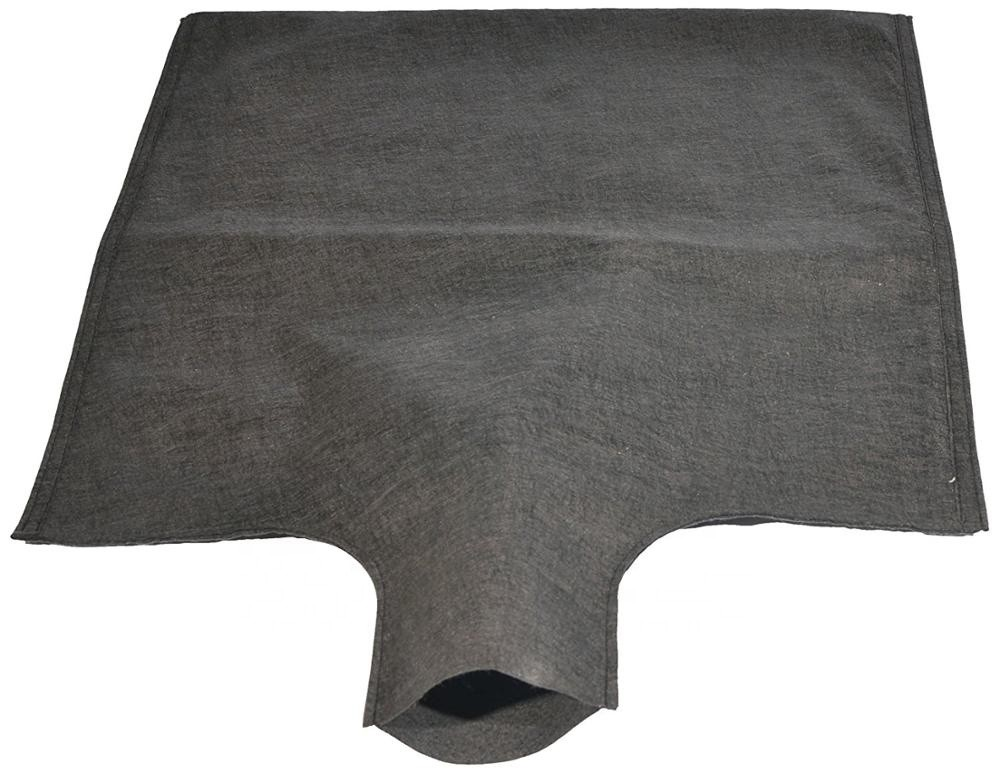

PioneerTEX Filter Silt Bags were manufacturered from a heavy-weight, UV resistant, needle punch nonwoven geotextile or PET nonwoven and High Strength Woven Geotextile Composite sew into a large, completely enclosed bag. And the FilterBags are fabricated with a "J" seam.
Customized geobags are available upon request, especially the filter material such as Nonwoven geotextile, Woven Geotextile, Nonwoven and Woven geotextile composite.PioneerTEX Silt bags could be made to order, and are available upon request.
PioneerTEX Dewatering Silt Bags Material Properties
-PP Staple Fiber Needle Punch Nonwoven Geotextile
| PioneerTEX GEOBAG | PP STAPLE FIBER NEEDLE PUNCH NONWOVEN GEOTEXTILE FOR SILT BAGS | |||
| Fabric Style | ASTM | PT 6 | PT 8 | PT 10 |
| AOS, Sieve (Microns) | D4751 | 70 (212) | 80 (180) | 100 (150) |
| Water Flow | D4491 | 110 gpm/ft2 4,480 l/min/m2 | 90 gpm/ft2 3,657 l/min/m2 | 80 gpm/ft2 3,251 l/min/m2 |
| Grab Tensile | D4632 | 160 lbs 711 N | 205 lbs 911 N | 250 lbs 1,110 N |
| Elongation | D4632 | 50 % | 50 % | 50 % |
| Tear | D4533 | 60 lbs 267 N | 80 lbs 356 N | 99.8 lbs 444 N |
| CBR Puncture | D6241 | 410 lbs 1820 N | 523 lbs 2330 N | 649 lbs 2890 N |
| Note:
| ||||
PioneerTEX PP Nonwoven Geotextile Silt Bags Specification
| Color | Black or Green |
| Material | 100% Polypropylene |
| Size | 3' x 4' / 6' x 6' / 10' x 15' / 15' x 15' |
| Weight | 270gsm |
| Width | 91.5cm / 183cm / 305cm / 457cm |
| Process | Lustring PP fabric, Sewing, Packing |
| Application | Contain sediment and oil pumped out during dewatering operations |
| Place of origin | Jiangsu, Mainland China |
PET Filament Needle Punch Nonwoven Geotextile for Silt Bags:
| MECHANICAL PROTERTIES | UNIT | GTX 110 | GTX 125 | GTX 150 | GTX 200 | GTX 250 | GTX 300 | GTX 350 | GTX 400 | GTX 450 | GTX 500 | GTX 550 | GTX 600 | |
| TENSILE STRENGTH T | KN/M | 4.5 | 7 | 9 | 10.5 | 14 | 17 | 21 | 24 | 25 | 27 | 29 | 31 | |
| [ASTM D 4595] M | 4.5 | 5.5 | 7.5 | 8.5 | 12 | 15 | 18 | 20 | 22 | 24 | 27 | 29 | ||
| ELONGATION AT BREAK T | % | 80 | 80 | 70 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| [ASTM D 4595] M | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
| GRAB STRENGTH T | N | 300 | 400 | 550 | 600 | 850 | 1000 | 1250 | 1450 | 1700 | 1900 | 2100 | 2300 | |
| [ASTM D 4632] M | 300 | 350 | 450 | 550 | 700 | 900 | 1100 | 1250 | 1450 | 1600 | 1800 | 2000 | ||
| GRAB ELONGATION T | % | 80 | 80 | 70 | 70 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| [ASTM D 4632] M | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
| TEAR STRENGTH T | N | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 700 | 750 | 800 | 900 | 950 | |
| [ASTM D 4533] M | 125 | 150 | 200 | 230 | 300 | 400 | 450 | 550 | 600 | 650 | 750 | 800 | ||
| CBR BURST STRENGTH [ASTM D 6241] | KN | 0.8 | 1 | 1.5 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | |
| PUNCTURE RESISTANCE [ASTM D 4833] | N | 180 | 220 | 275 | 310 | 450 | 520 | 600 | 730 | 880 | 990 | 1050 | 1150 | |
| MULLEN BURST [ASTM D 3786] | MPA | 1 | 1.2 | 1.3 | 1.6 | 2 | 2.6 | 3.1 | 3.8 | 4.4 | 5 | 5.5 | 6 | |
| CONE DROP RESISTANCE [BS EN 918] | MM | 34 | 34 | 32 | 29 | 27 | 23 | 20 | 16 | 12 | 11 | 10 | 9 | |
| HYDRAULIC PROPERTIES | ||||||||||||||
| FLOW RATE [ASTM D 4491] | L/S/M2 | 200 | 210 | 180 | 150 | 140 | 130 | 120 | 110 | 110 | 100 | 90 | 80 | |
| PERMEABILITY [ASTM 4491] | CM/S | 0.46 | 0.46 | 0.44 | 0.41 | 0.35 | 0.34 | 0.3 | 0.3 | 0.29 | 0.29 | 0.29 | 0.29 | |
| AOS O95 [ASTM D 4751] | MM | 0.13 | 0.12 | 0.12 | 0.11 | 0.11 | 0.1 | 0.1 | 0.09 | 0.09 | 0.08 | 0.07 | 0.065 | |
| PHYSICAL IDENTIFICAITON PROPERTIES | ||||||||||||||
| THICKNESS [ASTM D5199] | MM | 1.5 | 1.5 | 1.8 | 2.3 | 2.9 | 3.2 | 3.7 | 4.1 | 4.3 | 4.6 | 4.8 | 5 | |
| APPROX LOADING QTY/40HQ | M2 | 63600 | 63600 | 52800 | 39600 | 32400 | 26400 | 22800 | 20400 | 18000 | 15600 | 14400 | 13200 | |
PioneerTEX Geotextile Silt Bags Features:
**Traditionally settlement methods (such as straw bale structures or settlement ponds/tanks) are
often ineffective, rely on slow water movement, long settlement times, expensive and time consuming
tank maintenance and large works areas.
**Dewatering Bags are an efficient, practical, quick, simple and cost effective alternative solution to
manage this ongoing environmental problem of removing suspended solid pollutants from pumped
water on construction sites.

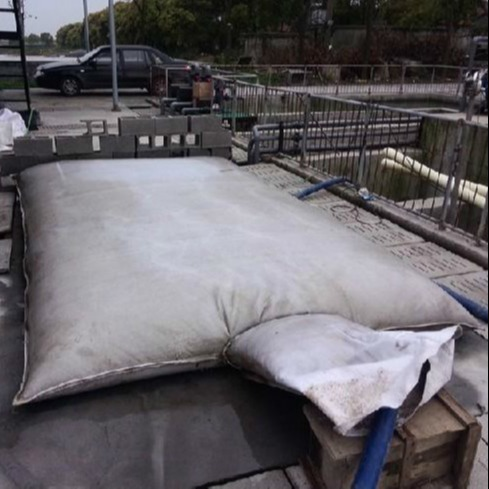

**Sediment-laden water is simply pumped into the high quality filter bags, which trap the solids inside
and allow filtered water to flow freely out through the geotextile fabric to disperse into the surrounding
ground or another collection point.
**Dewatering Silt Bags can also be used for gravity feed applications such as outfall pipes from site drainage or lagoons.
**The silt filter bags provide a passive non-mechanical solution, without the use of excessive or
specialist machinery (other than possible lifting equipment when full), and do not require a large work area.
**The sediment bags are also light, compact and easy to store, with minimal cleaning up required -
when full just dispose of the bag and replace with another bag.
**The Dewatering Silt Bags detain both oil and sediment, offering a combination of benefits not available
in alternative products. They can also be used to contain contaminated sediment whilst treatments
are applied (such as flocculants or absorbents).
**The standard 1.80 x 1.80m Dewatering bags has the capacity to trap near 1 tonne of silt and cope
with flow rates up to 2,730 l/min, while the larger 3.05 x 4.55m bags can trap over 4 tonnes of silt and cope with flow rates up to 6,818 l/min.
