| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 & ISO14001 |
| Model Number: | W-Drainage |
| Minimum Order Quantity: | 2000 sqm |
| Price: | 4.05 US$/SQM |
| Packaging Details: | PP WOVEN FABRIC |
| Delivery Time: | 2-3WEEKS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000SQM/WEEK |
| Quantity: | |
|---|---|
| Name: | 3D PP Wave Shaped Core Drainage Sheet Geocomposite | Core Material: | 100% PP |
|---|---|---|---|
| Nonwoven: | PP Or PET Needle Punch Nonwoven Geotex | Width: | 2.0mts |
| Thickness: | 8mm,10mm,15mm,20mm | Color: | White Nonwoven, Black Core |
| High Light: | Artificial Grass Geocomposite Drainage,PP Wave Geocomposite Sheet Drain,PP Geocomposite Sheet Drain | ||
Geocomposite 3D PP extruded wave shaped core
Drainage and Shockproof Mat(GDSM)
WaveDrain Three Dimensional Wave Shaped Core Drainage mats for Soccer Field Drainage Projects

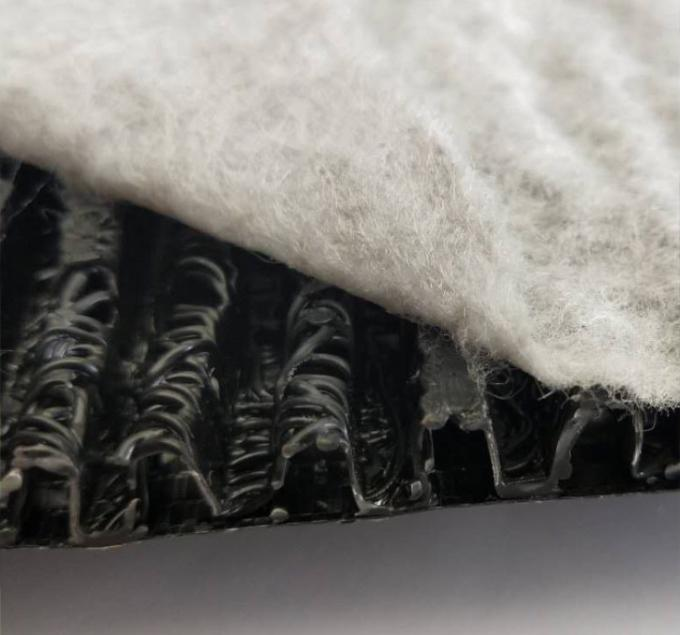

WaveDrain drainage geocomposites consist of a wave-extruded monofilament drainage core and at least one PioneerTEX nonwoven geotextile as separation / filtration layer. All components are made of polypropylene and are firmly bonded with each other.
WaveDrain drainage applications
Drainage of recultivation/cover soil layers on sealing systems
Gas drainage under sealing systems or buildings
Leachate detection in multi-layered sealing systems
Seepage water drainage at building structures such as bridge abutments, cellars etc.
Advantages of WaveDrain drainage geocomposites
Filtration, protection and drainage in one product
Quick and cost-effective installation
Firm bond between geotextiles and drainage core
Resistance to chemical and biological degradation
Highest quality control standards

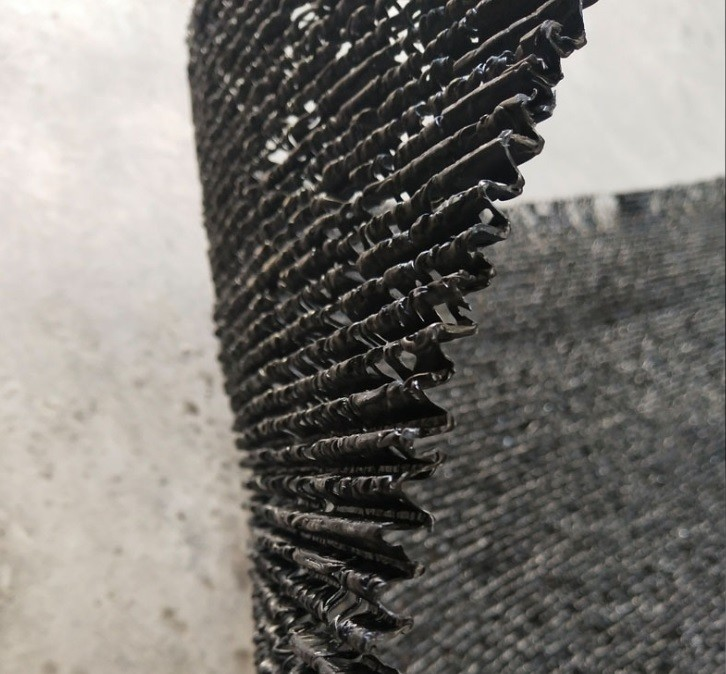

Special Advantage 1: WaveDrain Its wave structure of the drainage core ensures a high hydraulic capacity in the long term.
Special Advantage 2: WaveDrain is economic and efficient :
WaveDrain replaces mineral material equivalently at significantly reduced work assignment and machinery application due to easier transportation and installation.
Special Advantage 3: Thermally fused components for high shear resistant bond
WaveDrain geocomposites achieve high inner shear strength due to thermal fusion of the geotextile components to the drainage core. This shear resistant bond also simplifies installation of geocomposite panels.
WaveDrain mats – the economic and efficient water and gas drainage
WaveDrain is used extensively to drain water or gas in various applications. In multi-layered sealing systems, PioDrain fulfills multiple functions.Three functions in one product – Filtration, protection and drainage
WaveDrain safely discharges seepage water of the covering soil layer. Additionally, it also filters the soil by means of the firmly attached nonwoven cover geotextile.Sealing elements such as geomembranes are protected by WaveDrain against coarse particles of the adjacent soils.
WaveDrain drainage mats – Economic and efficient

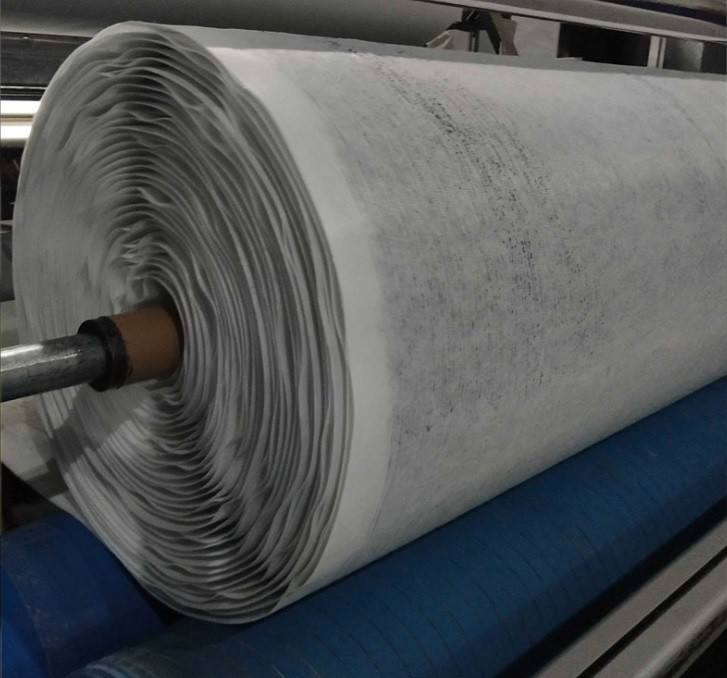

The 1.90m or 3.80m wide and typically 35m or 70m long WaveDrain rolls are quick and easy to install. The pre-manufactured overlap configuration of WaveDrain provides a simple and quick butt jointing of the geocomposite panels in the longitudinal direction.
The use of WaveDrain in earth construction requires less excavation of in-situ material and, in the case of a landfill liner, the containment volume is increased.
Using WaveDrain drainage mats saves time and natural resources since 10,000m² of the WaveDrain system can replace the extraction, transport and installation of approximately 3,000m³ of granular drainage material.
PioneerTEX Wave Shaped Core Composite Dainage Sheet Specificaiton
for Soccer Field Dainage Projects:
| ITEM | W-DRAIN | W-DRAIN | W-DRAIN | W-DRAIN |
| W-Drain Thickness(mm) | 8 mm | 10mm | 15mm | 20mm |
| Width(mm) | 2000 | 2000 | 2000 | 2000 |
| Nonwoven Geotextile(g/m2) | 250 | 250 | 250 | 250 |
| Water Flow(m3/s.mi=0.95,@100kPa | 0.82×10-3 | 2.72×10-3 | 4.36×10-3 | 5.5×10-3 |
| Packaging (Long×Wide) | 70×2 | 50×2 | 30×2 | 25×2 |
