| Place of Origin: | China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | Geomat |
| Minimum Order Quantity: | 2000 sqm |
| Price: | 0.5US$/sqm |
| Packaging Details: | PP woven fabric packing outisde |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sqm/Day |
| Quantity: | |
|---|---|
| Name: | Glass Fiber Geogrid Fabric Reinforcement Modified Polymer Coating | Material: | Fiberglass |
|---|---|---|---|
| Width: | 1,2,4,6mts | Color: | Black |
| Mesh Size: | 25.4*25.4,12.7*12.7 | Use: | Road Extension. |
| High Light: | 200kn glass fiber geogrid,modified bitumen coated glass fiber geogrid,paving reinforcement glass fiber geogrid | ||

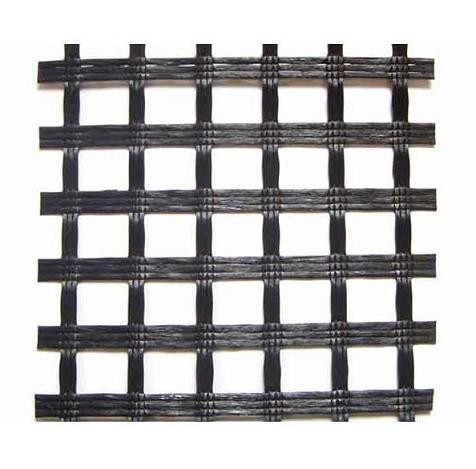

Fiberglass Geogrid for Road Construction Material
Fiberglass Geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high flexibility, and favorable high and low temperature resistance. The products after surface covering own the favorable property of alkali resistance and aging resistance.
Application
1.Maintenance of old asphalt road reinforcement of asphalt pavement.
2.Converting old cement concrete road into composite road.
3.Restraining reflection cracking caused by block shrinkage.
4.Preventing and controlling the cracking caused by new and old combination and uneven settlement.
5.Road extension.
6.Reinforcement of soft soil foundation and overall strength of roadbed.
| Tensile Properties | Test Method | Unit | RG3030 | RG5050 | RG1010 | |
| Ultimate Strength(1) | MD | ASTM D6637 | KN/M | 30 | 50 | 100 |
| XD | ASTM D6637 | KN/M | 30 | 50 | 100 | |
| Strain at Ultimate(2) | MD | ASTM D6637 | % | 3 | 3 | 3 |
| XD | ASTM D6637 | % | 3 | 3 | 3 | |
| Grid material | MD | FIBERGLASS | ||||
| XD | ||||||
| Coating | MD | BITUMINOUS | ||||
| XD | ||||||
| Physical Properties | Unit | RG3030 | RG5050 | RG1010 | ||
| Aperture Size(3) (Rib middle to middle) | MD | Nominal | MM | 25.4 | 25.4 | 25.4 |
| CD | Nominal | MM | 25.4 | 25.4 | 25.4 | |
| Roll Width(4) | Minimum | M | 2 | 2 | 2 | |
| Roll Length(4) | Minimum | M | 50 | 50 | 50 | |
| Estimated Roll Weight(2) | Kg | 20 | 28 | 55 | ||
| Name: | Glass Fiber Geogrid Fabric Reinforcement Modified Polymer Coating | Material: | Fiberglass |
|---|---|---|---|
| Width: | 1,2,4,6mts | Color: | Black |
| Mesh Size: | 25.4*25.4,12.7*12.7 | Use: | Road Extension. |
| High Light: | 200kn glass fiber geogrid,modified bitumen coated glass fiber geogrid,paving reinforcement glass fiber geogrid | ||
