| Place of Origin: | China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | Dam |
| Minimum Order Quantity: | 1 bag |
| Price: | 2.7 US$/SQM |
| Packaging Details: | PP Woven fabric |
| Delivery Time: | 3-4weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5-10 Units/day |
| Quantity: | |
|---|---|
| Material: | 100% PP Woven Fabric | Bag Width: | Made To Order |
|---|---|---|---|
| Bag Length: | Made To Order | Fabric Weight: | 400gsm |
| Color: | Black | Strength: | 70/70 KN/M |
| High Light: | Dewatering Geotube Breakwater,GT400 Geotube Breakwater,200gsm Geotextile | ||
We, PioneerTEX is a professional manufacturer of geotube and geobag in China.
We could produce many types of geotube and geobag as per customer's project request.
All bags and fabrics could be customized.
PIONEERTEX Geotube & Geobag Product List are as below:
What is a Geotube?

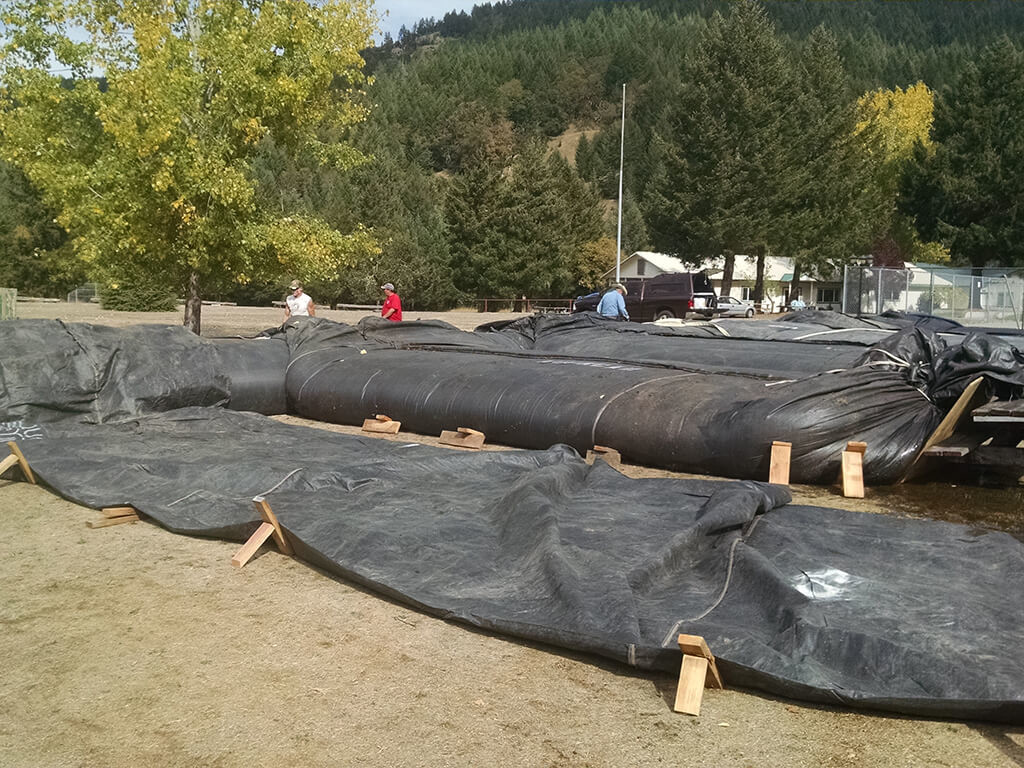

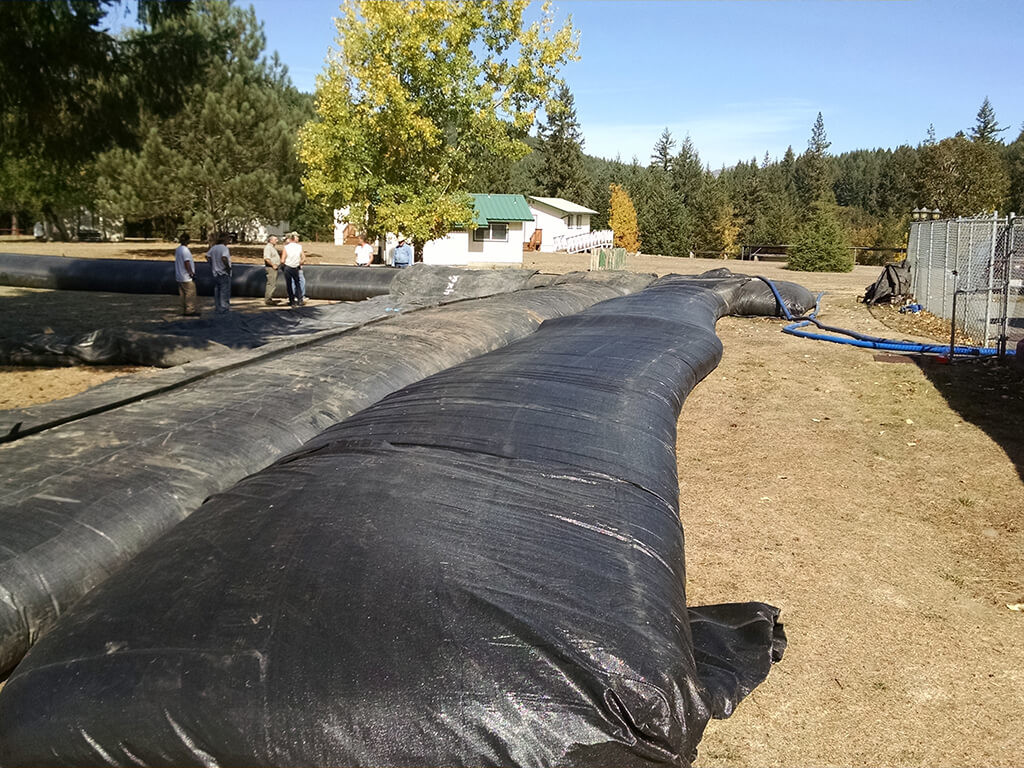

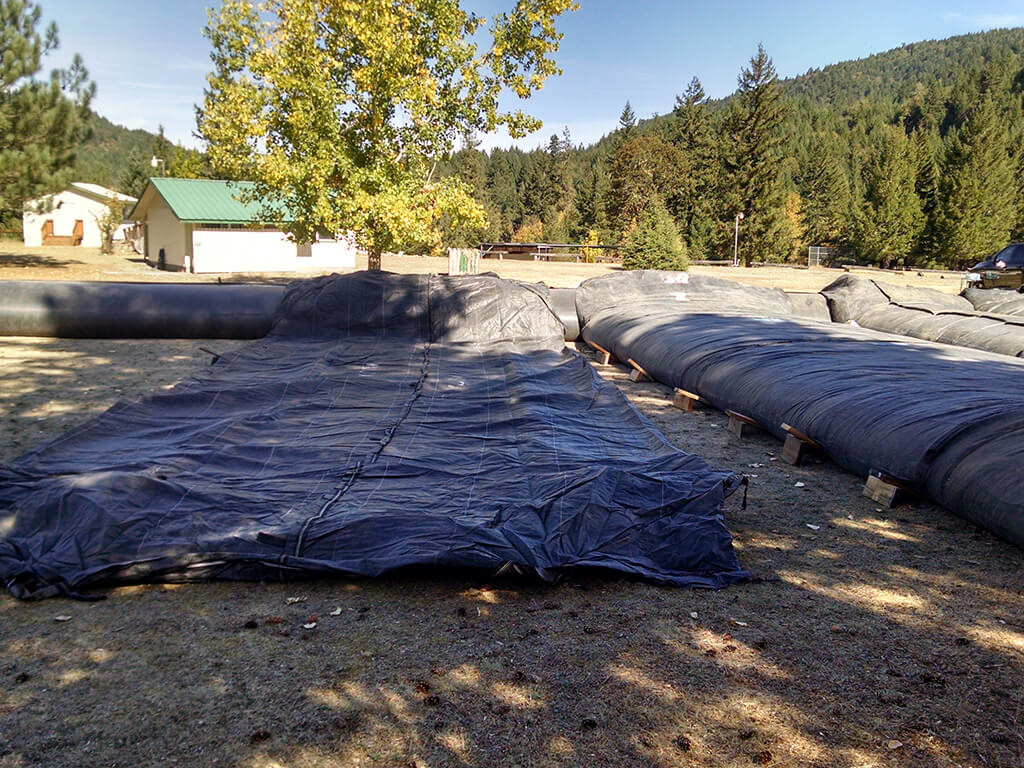

PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.
How do a PioneerTEX Geotube work?
Gravimetric drainage of the sludge is accompanied by a volume reduction.
Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.
Is Polymer Flocculant Necessary for Dewatering?
Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.
Can we do a trial on the geotube before purchasing?
Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.
GT400 data sheet is as below:
| Material: PP mono/Fabrillated Yarn woven geotextile for Geotube | ||||
| Material Quality Code: PIONEERTEX-GT400 | ||||
| Mechanical Properties | Test Method | Unit | Typical Value | |
| MD | XD | |||
| Tensile Strength | ASTM D 4595 | KN/M | 70 | 70 |
| Elongation at break | ASTM D 4595 | % | 25 | 25 |
| Seam Strength | ASTM D 4884 | KN/M | 35 | |
| CBR Puncture Strength | ASTM D 6241 | KN | 5 | |
| Hydraulic Poperties | Test Method | Unit | Typical Value | |
| Opening Size(AOS) | ASTM D 4751 | mm | 0.4 | |
| Flow Rate | ASTM D 4491 | l/min/m2 | 800 | |
| Anti-UV(500hours) | ASTM D 4355 | % | 85 | |
| Physical Properties | Test Method | Unit | Typical Value | |
| Mass Per Unti Area | ASTM D5261 | G/M2 | 400 | |
Exporting standard PP woven fabric packaging outside without pallet.
