| Place of Origin: | China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | GridMacmat |
| Minimum Order Quantity: | 2000SQM |
| Price: | 1.0-2.5 US$/SQM |
| Packaging Details: | standard PP woven fabric |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000sqm/day |
| Quantity: | |
|---|---|
| Name: | Geogrid Reinforced 3D Geomat Extruded HDPE Erosion Control Blanket | Material: | Geogrid And HDPE Extruded Geomat |
|---|---|---|---|
| Width: | 2mts | Length: | 50mts |
| Color: | Black,white Or Green | Geogrid: | PET Woven With PVC Coating |
| Geogrid Strength: | Made To Order | Geomat: | 300gsm |
| High Light: | HDPE Erosion Control Blanket,Geogrid Erosion Control Blanket,Geogrid Reinforced 3D Geomat | ||

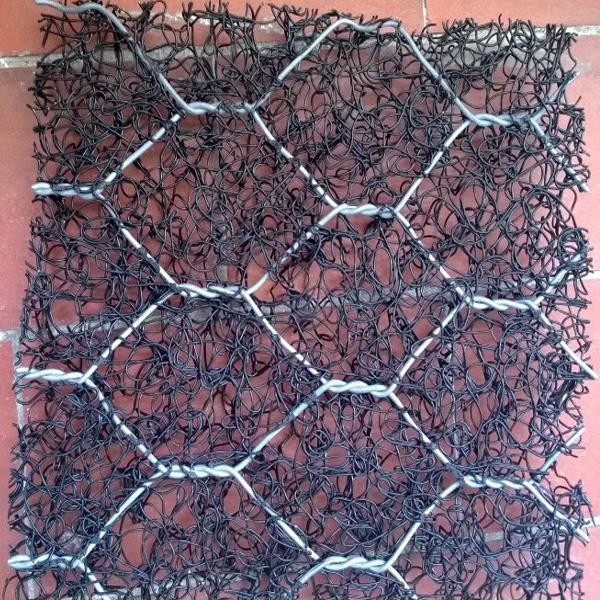

Geogrid Reinforced 3D Erosion Control Mat made of HDPE Extruded Monofilament by heating
What is Geogrid reinforced 3D Erosion Control Mat(ECM)?
Geogrid reinforced Erosion Control mat is also called Macmat.
It is a composite of hexagonal wire mesh made up of geotechnical materials.
It combined the advantages of polymer 3D Erosion Control Mat(ECM) material and steel mesh perfectly.
Particularly ,reinforced Erosion Control Mat (ECM) could maintain a perfect advantage of allowing natural growth while protecting the erosion and safekeeping the soil as well as preventing the rock fall.
Wire Mesh Reinforced 3D Geomat MacMat Features:
1.water permeability
After filling in the soil, the pore is beneficial to the discharge of water, reducing the soil pore water pressure to ensure the shear strength of the soil and conducive to the stability of the whole structure.; The cost of drainage is saved ,so It reduces the overall cost.
2. Vegetation
The pores of reinforced gabion mattress create conditions for the flow of water , The natural exchange of water and soil is realized. Plants can grow naturally , after some time ,the structure and nature truly achieve harmony.
3. Long life
reinforced gabion mattress materials is 10% aluminum-zinc alloy wire, The uniformity of coating thickness is guaranteed by fine technological foundation , Strong resistance to corrosion and long service life.
4. The economy
reinforced gabion mattress protection works consist of wire mesh box and filler material and low cost. In particular, the construction of protection works in poor areas of soil and foundation, Large sums of money can be reduced in terms of foundation treatment. More reflects the price advantage.
5. Construction is convenient
Wire Mesh Gabion can be designed to produce semi-finished products in accordance with the design intention in factory. Assemble and finalize in construction site. simplicity of operator and small effects of climate , It can guarantee the construction quality and speed up the construction process.
Wire Mesh Reinforced 3D Geomat Application:
| PioneerTex Wire Mesh Reinforced Erosion Control Mat-MacMat | |||||||
| PP 3D GeoMat Technical Data | ITEM | Test Method | Unit | Type 1 | Type 2 | Type 3 | Type 4 |
| Polymer Material | N/A | PP | |||||
| Mass Per Unit Area | EN ISO 965 | gsm | 300 | 300 | 300 | 300 | |
| Melting Point | N/A | ℃ | 150 | 150 | 150 | 150 | |
| Density | N/A | g/cm3 | 0.91 | 0.91 | 0.91 | 0.91 | |
| PP Monofilament Diameter | EN ISO 9863 | mm | 0.55 | 0.55 | 0.55 | 0.55 | |
| Open Index | N/A | % | 90 | 90 | 90 | 90 | |
| Tensile Strength | EN ISO10319 | KN/M | 1.6 | 1.6 | 1.6 | 1.6 | |
| Anti-UV( Strength Retain after 500hrs) | ASTM D 4533 | % | 80 | 80 | 80 | 80 | |
| Wire Mesh Technical Data | Hot dipped galvanized wire mesh | ||||||
| Mesh Size | N/A | cm | 6*8 | 6*8 | 8*10 | 8*10 | |
| Steel wire diamater | N/A | mm | 2.2 | 2.2/3.2 | 2.7 | 2.7/3.7 | |
| Minimum Galvanized coating weight | EN ISO10244 | gsm | 230 | 230/300 | 230 | 230/300 | |
| Composite Erosion Control Mat | Tensile Strength | EN ISO10319 | KN/M | 35 | 35 | 47 | 47 |
| Thickness | EN 964 | mm | 17 | 17 | 18 | 18 | |
| water flow | EN ISO12958 | m/s | 4-6 | 4-6 | 4-6 | 4-6 | |
| Total weight per m2 | EN ISO 9684 | gsm | 1650 | 1650 | 1670 | 1970 | |
| Packaging Dimensions | |||||||
| Length Per Roll | N/A | m | 25 | ||||
| Width Per Roll | N/A | m | 2 | ||||
| Total Square Meter | N/A | m2 | 50 | ||||
