| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | PIONEERTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | Comobogrid |
| Minimum Order Quantity: | 10000 Square Meter/Square |
| Price: | $0.90 - $1.80 / Square Meter |
| Packaging Details: | EXPORTING STANDARD PP WOVEN FABRIC |
| Delivery Time: | 2-3weeks |
| Supply Ability: | 50000 Square Meter/Square Meters per Month |
| Quantity: | |
|---|---|
| Name: | Geocomposite Combogrid Glass Filament Geogrid | Product Name: | Glass Pavement Reinforcement System |
|---|---|---|---|
| Keyword: | Glass Filament Reinforced Non-woven Geotextile | Material: | Glass Filament And Polyester NW |
| Port: | NANJING PORT | Applications: | Surface Course Reinforcement |
| High Light: | glass filament composite geogrid,surface course reinforcement composite geogrid | ||
Combogrid-Glass Filament Geogrid Reinforced Needle Punch Nonwoven Geotextile Geocomposite Pavement Reinforcement System
PioneerTex Glass Geogrid and Nonwoven Geotextile Composite-Polypave Combogrid
Glass Filament Reinforced Nonwoven Paving Mat Geocomposite Coated Bitumen for Asphalt Overlay Reinforcement
Instruction:

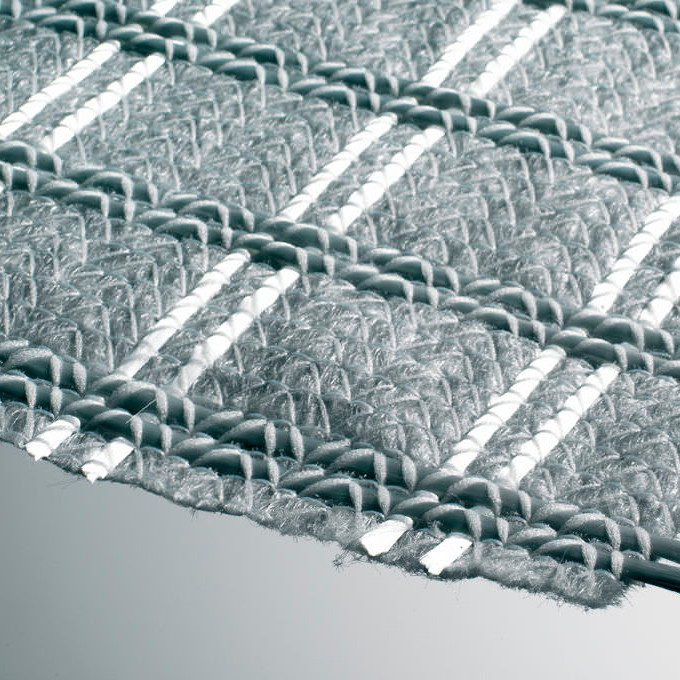

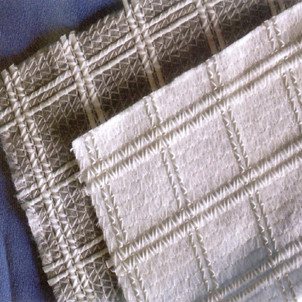

PioneerTex Glass Filament Reinforced Nonwoven Paving Mat is an asphalt reinforcement composite which combines a high tensile E type Fiberglass grid with a lightweight non-woven by warp-knitting processing. Then both of them coated with modified bitumen to strengthen the bond with the asphalt layers.
This glass-polypave composite provides excellent performance in stress relief and to prevent reflective cracking in asphalt overlays. PioneerTex glass filament reinforced nonwoven paving mat geo-composite provides significantly greater tensile strength at low strain when compared to the conventional paving fabric and mats, which reduces maintenance costs by delaying reflective cracking and extends the service life of the overlay.
Applications:
Surface course reinforcement
Cracks prevention and road maintanance and repair
Asphalt or Concrete road resurfacing
Airport Construction
Features:
High-strength, low elongation
High asphalt absorption / retention
Good separation against moisture and gases to road base.
Better bonding strength with surface layers.
Easy installation and save labor cost.
| Hybrid Pavement Reinforcement Interlay System | |||||
| Glass Filament Reinforced Needle Punch Nonwoven Geotextile Composite | |||||
| Technical Specification | |||||
| Properties | Unit | GC-30/30 | GC-50/50 | GC-100/100 | GC-120/120 |
| Materials | / | Glass Filament + PET Needle Punch Nonwoven Geotex | |||
| Nonwoven | / | 120gsm Polyester Needle Punch Nonwoven | |||
| Coating | / | non-coating | |||
| Mesh size of Grid | mm | 25.4 x 25.4 | |||
| Ultimate Tensile Strength | KN/M | 30 x 30 | 50 x 50 | 100 x 100 | 120 x 120 |
| MD x CMD | |||||
| Elongation at Ultimate | % | <3 | <3 | <3 | <3 |
| Roll Width | M | 5.95 Max. | |||
| Roll Length | M | 50 - 100 | |||
| Name: | Geocomposite Combogrid Glass Filament Geogrid | Product Name: | Glass Pavement Reinforcement System |
|---|---|---|---|
| Keyword: | Glass Filament Reinforced Non-woven Geotextile | Material: | Glass Filament And Polyester NW |
| Port: | NANJING PORT | Applications: | Surface Course Reinforcement |
| High Light: | glass filament composite geogrid,surface course reinforcement composite geogrid | ||
Combogrid-Glass Filament Geogrid Reinforced Needle Punch Nonwoven Geotextile Geocomposite Pavement Reinforcement System
PioneerTex Glass Geogrid and Nonwoven Geotextile Composite-Polypave Combogrid
Glass Filament Reinforced Nonwoven Paving Mat Geocomposite Coated Bitumen for Asphalt Overlay Reinforcement
Instruction:
PioneerTex Glass Filament Reinforced Nonwoven Paving Mat is an asphalt reinforcement composite which combines a high tensile E type Fiberglass grid with a lightweight non-woven by warp-knitting processing. Then both of them coated with modified bitumen to strengthen the bond with the asphalt layers.
This glass-polypave composite provides excellent performance in stress relief and to prevent reflective cracking in asphalt overlays. PioneerTex glass filament reinforced nonwoven paving mat geo-composite provides significantly greater tensile strength at low strain when compared to the conventional paving fabric and mats, which reduces maintenance costs by delaying reflective cracking and extends the service life of the overlay.
Applications:
Surface course reinforcement
Cracks prevention and road maintanance and repair
Asphalt or Concrete road resurfacing
Airport Construction
Features:
High-strength, low elongation
High asphalt absorption / retention
Good separation against moisture and gases to road base.
Better bonding strength with surface layers.
Easy installation and save labor cost.
| Hybrid Pavement Reinforcement Interlay System | |||||
| Glass Filament Reinforced Needle Punch Nonwoven Geotextile Composite | |||||
| Technical Specification | |||||
| Properties | Unit | GC-30/30 | GC-50/50 | GC-100/100 | GC-120/120 |
| Materials | / | Glass Filament + PET Needle Punch Nonwoven Geotex | |||
| Nonwoven | / | 120gsm Polyester Needle Punch Nonwoven | |||
| Coating | / | non-coating | |||
| Mesh size of Grid | mm | 25.4 x 25.4 | |||
| Ultimate Tensile Strength | KN/M | 30 x 30 | 50 x 50 | 100 x 100 | 120 x 120 |
| MD x CMD | |||||
| Elongation at Ultimate | % | <3 | <3 | <3 | <3 |
| Roll Width | M | 5.95 Max. | |||
| Roll Length | M | 50 - 100 | |||
