| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | PIONEERTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | CEMENT CANVAS |
| Minimum Order Quantity: | 2000 Square Meter/Square |
| Price: | $2.40 - $2.95 / Square Meter |
| Packaging Details: | Exporting standard PP woven fabric packaging outside. |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
| Quantity: | |
|---|---|
Concrete Impregnated Canvas
PIONEERTEX
6810999000
| Geotextile Type: | Woven Geotextiles | Product Name: | Concrete Into Canvas |
|---|---|---|---|
| Material: | Polyester | Width: | 2.0m |
| Length: | 50m-100m/roll | Size: | Customized Size |
| Keyword: | Concrete Into Canvas | Application: | Riverbank Protection |
| Technology: | Special 3D Weaving Technology | Type: | Canvas Section |
| Port: | Changzhou Port, Or Shanghai Port | ||
| High Light: | Concrete Impregnated Canvas GCCM Rolls,2.0m Concrete Impregnated Canvas,Concrete to Canvas GCCM Rolls | ||

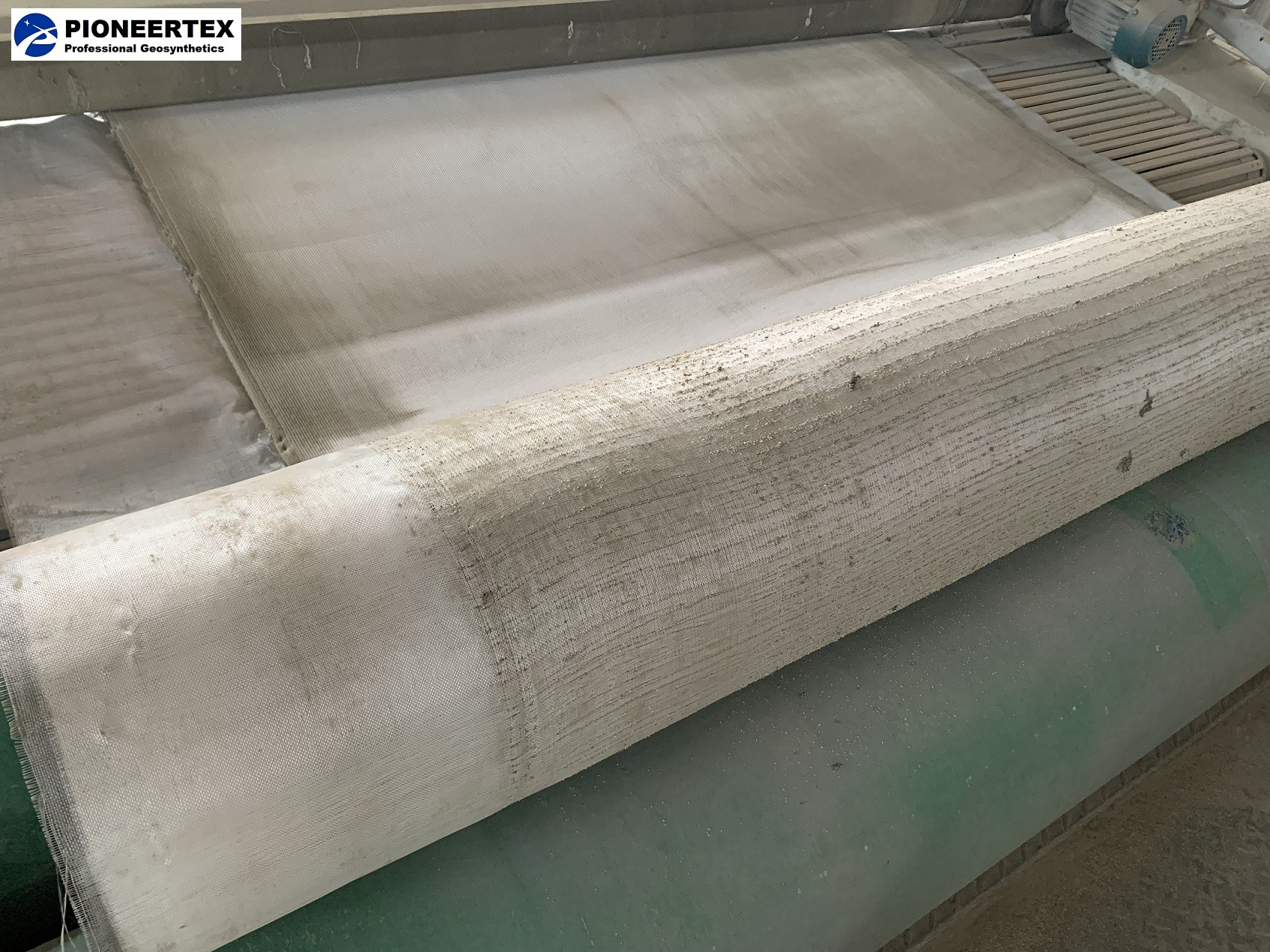

Cement Canvas(Concrete Impregnated Canvas) GCCM is a flexible and soft cement impregnated fabric, that hardens on hydration to form a thin,durable,water proof and fire retardant concrete layer. Essentially, it's concrete on a roll.
Cement Canvas GCCM allows concrete construction without the need for plant or mixing equipment. It's very easy, and just add water on the CC top face-canvas side.
Cement Canvas GCCM was made of 3D spacer fabric and Glass roving woven geotextile or HDPE geo-membrane. The specially formulated dry concrete powder mix will be reinforced by 3D spacer fabric in the middle, and covered by glass roving geotextile or water-proof HDPE geo-membrane.
Once set, the 3D spacer fabric will reinforce the concrete, prevent crack propagation and provide a safe plastic failure mode. The glass roving at the bottom will offer special protection on the CC, and offer higher tensile strength for composite.
HDPE geo-membrane backing at the bottom face of CC ensures the material is completely water proof. Cement Canvas GCCM is available in 4 thickness CC5, CC8, CC10 and CC13, which are 5,8,10 and 13mm thick respectively.
| ITEM | TEST METHOD | 5MM | 8MM | 13MM | |
| Flexural Strength (Final) | ASTM D8058 | 4.0MPa | 4.0MPa | 4.0MPa | |
| Compressive Strength | ASTM D8329 | 40Mpa | 50Mpa | 60Mpa | |
| Tensile Strength(unset) | ASTM D6768 | 8KN/M | |||
| Tensile Strength(set-final) | ASTM D4885 | 20KN/M | 25KN/M | 30KN/M | |
| Abasion(Max.value) | ASTM C1353 | 0.3MM/1000 cycles | |||
| REMARK: CC10 data sheet is between 8mm and 13mm. | |||||
| Geotextile Type: | Woven Geotextiles | Product Name: | Concrete Into Canvas |
|---|---|---|---|
| Material: | Polyester | Width: | 2.0m |
| Length: | 50m-100m/roll | Size: | Customized Size |
| Keyword: | Concrete Into Canvas | Application: | Riverbank Protection |
| Technology: | Special 3D Weaving Technology | Type: | Canvas Section |
| Port: | Changzhou Port, Or Shanghai Port | ||
| High Light: | Concrete Impregnated Canvas GCCM Rolls,2.0m Concrete Impregnated Canvas,Concrete to Canvas GCCM Rolls | ||
Cement Canvas(Concrete Impregnated Canvas) GCCM is a flexible and soft cement impregnated fabric, that hardens on hydration to form a thin,durable,water proof and fire retardant concrete layer. Essentially, it's concrete on a roll.
Cement Canvas GCCM allows concrete construction without the need for plant or mixing equipment. It's very easy, and just add water on the CC top face-canvas side.
Cement Canvas GCCM was made of 3D spacer fabric and Glass roving woven geotextile or HDPE geo-membrane. The specially formulated dry concrete powder mix will be reinforced by 3D spacer fabric in the middle, and covered by glass roving geotextile or water-proof HDPE geo-membrane.
Once set, the 3D spacer fabric will reinforce the concrete, prevent crack propagation and provide a safe plastic failure mode. The glass roving at the bottom will offer special protection on the CC, and offer higher tensile strength for composite.
HDPE geo-membrane backing at the bottom face of CC ensures the material is completely water proof. Cement Canvas GCCM is available in 4 thickness CC5, CC8, CC10 and CC13, which are 5,8,10 and 13mm thick respectively.
| ITEM | TEST METHOD | 5MM | 8MM | 13MM | |
| Flexural Strength (Final) | ASTM D8058 | 4.0MPa | 4.0MPa | 4.0MPa | |
| Compressive Strength | ASTM D8329 | 40Mpa | 50Mpa | 60Mpa | |
| Tensile Strength(unset) | ASTM D6768 | 8KN/M | |||
| Tensile Strength(set-final) | ASTM D4885 | 20KN/M | 25KN/M | 30KN/M | |
| Abasion(Max.value) | ASTM C1353 | 0.3MM/1000 cycles | |||
| REMARK: CC10 data sheet is between 8mm and 13mm. | |||||
