| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 & ISO14001 |
| Model Number: | W-Drainage |
| Minimum Order Quantity: | 2000 sqm |
| Price: | 4.05 US$/SQM |
| Packaging Details: | PP WOVEN FABRIC |
| Delivery Time: | 2-3WEEKS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000SQM/WEEK |
| Quantity: | |
|---|---|
| Name: | 3D PP Wave Shaped Core Drainage Sheet Geocomposite | Core Material: | 100% PP |
|---|---|---|---|
| Nonwoven: | PP Or PET Needle Punch Nonwoven Geotex | Width: | 2.0mts |
| Thickness: | 8mm,10mm,15mm,20mm | Color: | White Nonwoven, Black Core |
| High Light: | W Shape Geocomposite Drainage Sheet,Grass Base Geocomposite Drainage Sheet,3D PP Geocomposite Sheet Drain | ||
W shape drain core geocomposite drainage sheet
for sports field artificial grass base to offer drain and shockproof

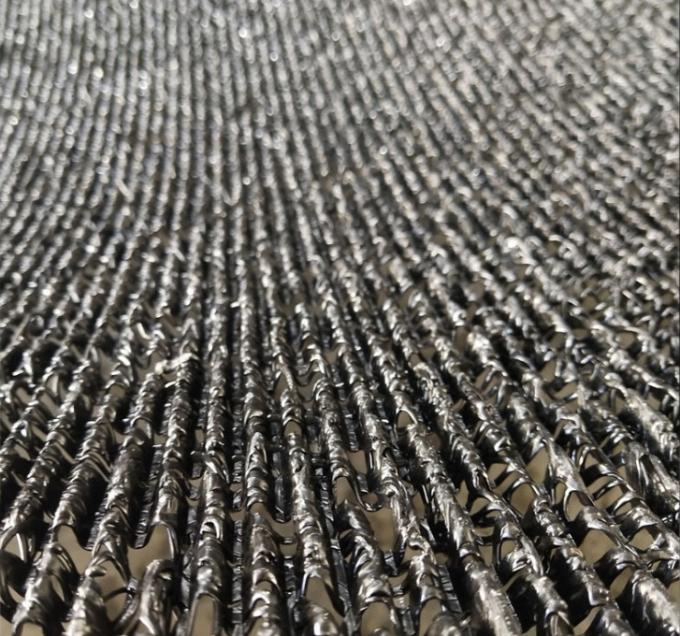

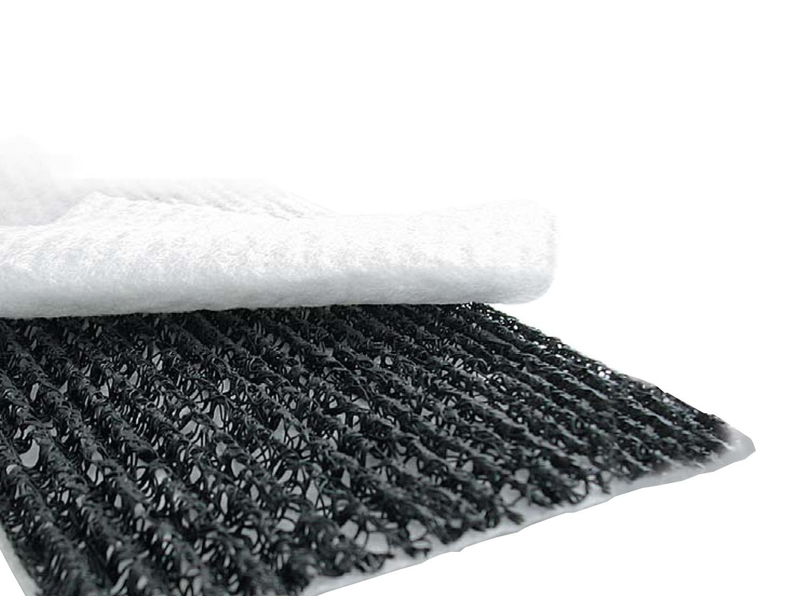

PioDrain drainage geocomposites consist of a wave-extruded monofilament drainage core and at least one PioneerTEX nonwoven geotextile as separation / filtration layer. All components are made of polypropylene and are firmly bonded with each other.
PioDrain drainage applications
Advantages of PioDrain drainage geocomposites

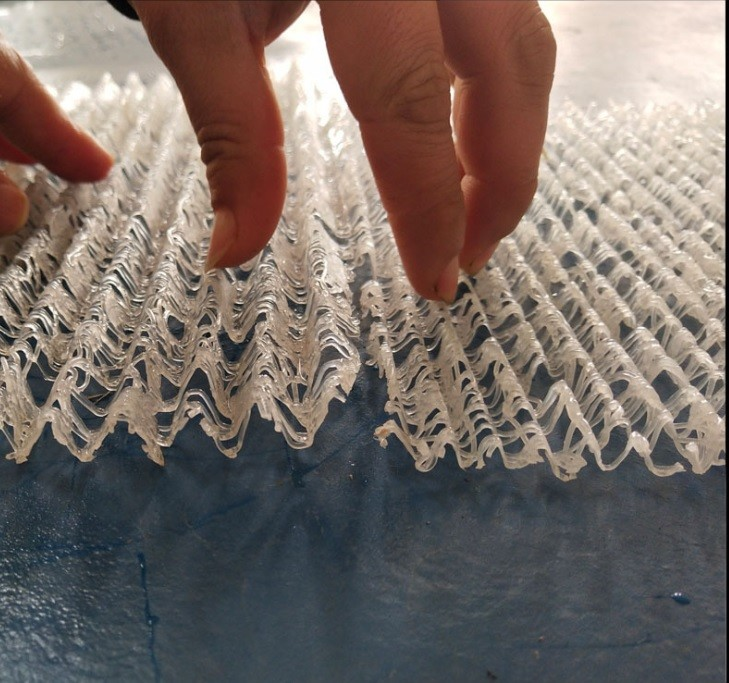

Special Advantage 1: PioDrain Its wave structure of the drainage core ensures a high hydraulic capacity in the long term.
Special Advantage 2: PioDrain is economic and efficient :
PioDrain replaces mineral material equivalently at significantly reduced work assignment and machinery application due to easier transportation and installation.

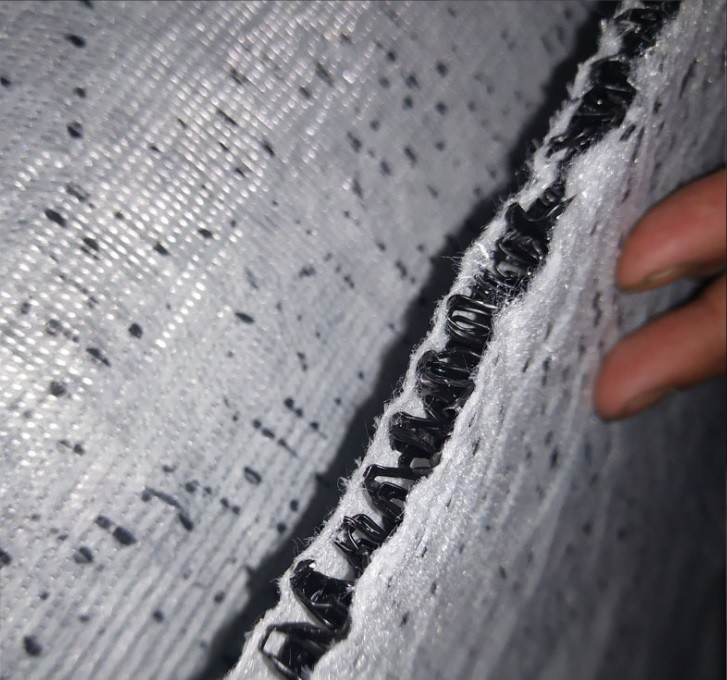

Special Advantage 3: Thermally fused components for high shear resistant bond
PioDrain geocomposites achieve high inner shear strength due to thermal fusion of the geotextile components to the drainage core. This shear resistant bond also simplifies installation of geocomposite panels.
PioDrain mats – the economic and efficient water and gas drainage
PioDrain is used extensively to drain water or gas in various applications. In multi-layered sealing systems, PioDrain fulfills multiple functions.
Three functions in one product – Filtration, protection and drainage
PioDrain safely discharges seepage water of the covering soil layer. Additionally, it also filters the soil by means of the firmly attached nonwoven cover geotextile.Sealing elements such as geomembranes are protected by PioDrain against coarse particles of the adjacent soils.
PioDrain drainage mats – Economic and efficient
The 1.90m or 3.80m wide and typically 35m or 70m long PioDrain rolls are quick and easy to install. The pre-manufactured overlap configuration of PioDrain provides a simple and quick butt jointing of the geocomposite panels in the longitudinal direction.
The use of PioDrain in earth construction requires less excavation of in-situ material and, in the case of a landfill liner, the containment volume is increased.
Using PioDrain drainage mats saves time and natural resources since 10,000m² of the PioDrain system can replace the extraction, transport and installation of approximately 3,000m³ of granular drainage material.
PioneerTEX Wave Shaped Core Composite Dainage Sheet Specificaiton
for Soccer Field Dainage Projects:
| ITEM | W-DRAIN | W-DRAIN | W-DRAIN | W-DRAIN |
| W-Drain Thickness(mm) | 8 mm | 10mm | 15mm | 20mm |
| Width(mm) | 2000 | 2000 | 2000 | 2000 |
| Nonwoven Geotextile(g/m2) | 250 | 250 | 250 | 250 |
| Water Flow(m3/s.mi=0.95,@100kPa | 0.82×10-3 | 2.72×10-3 | 4.36×10-3 | 5.5×10-3 |
| Packaging (Long×Wide) | 70×2 | 50×2 | 30×2 | 25×2 |
