| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | PIONEERTEX |
| Certification: | ISO9001 & ISO14001 |
| Model Number: | 8kgs/m2, 11kgs/m2, 14kgs/m2, 18kgs/m2 |
| Minimum Order Quantity: | 1600 Square Meter/Square |
| Price: | $15.00 - $18.00 / Square Meter |
| Packaging Details: | One layer of waterproof PE film inside, and one lay of THICK PE Film outside. |
| Delivery Time: | 3-4WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Square Meter/Square Meters per Week |
| Quantity: | |
|---|---|
CONCRETE EROSION CONTROL MAT (CECM)
PIONEERTEX
6810999000
| Warranty: | 25 Years | After-sale Service: | Online Technical Support |
|---|---|---|---|
| Project Solution Capability: | Graphic Design | Product Name: | Geosyntheic Cementious Composite Mat GCCM |
| Color: | White Or Green | Powder Material: | Cement And Sand And Special Additive Powder |
| Geotextile: | Polyester Or PP Geocomposite | Backing: | Geomembrane Backing Or Note |
| Brand: | PIONEERTEX | Key Word: | CONCRETE MAT CLOTH |
| Certificate: | SGS | Thickness: | 8MM-13mm |
| TENSILE STRENGTH: | 10kn/m | Port: | NANJING Port |
| High Light: | 8mm concrete erosion Control mats,8kgs/m2 concrete mat cloth roll,concrete mat cloth 8m roll | ||

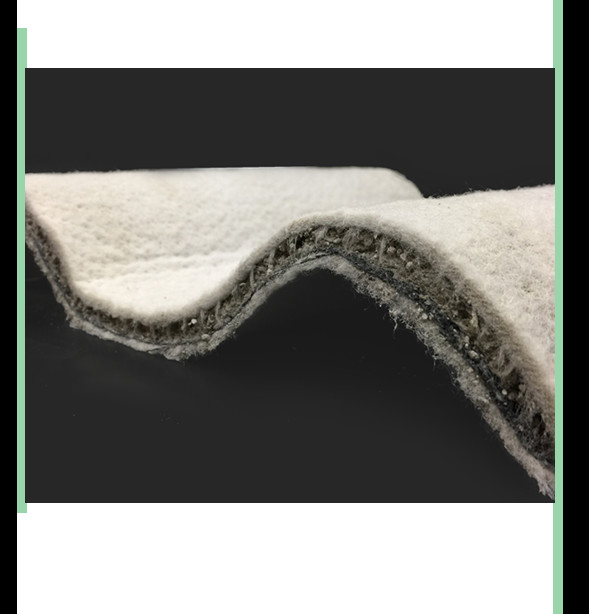

What's the structure of Cement Blanket ( Concrete Erosion Control Mat )?

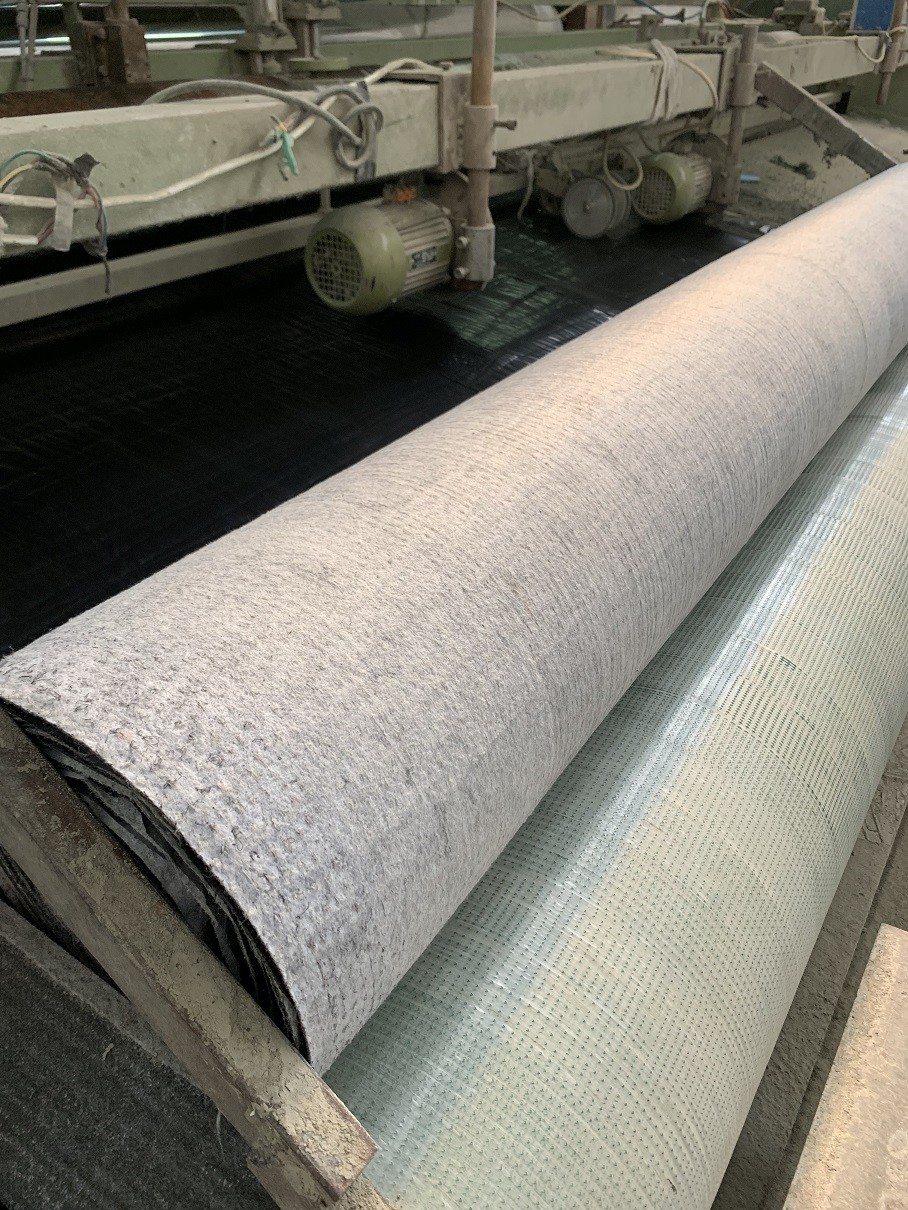

CEMENT BALANKET (Concrete Erosion Control Mat) GCCM was made of woven geotextile, nonwoven geotextile and Sand mixed Cement;
Cement Sand mixture was blended with glass/basalt fiber.
And the specially formulated dry concrete powder mix will be also mixed with special sand and special addtive for reinforcement to offer high temperature compressive strength more than 60Mpa.
PIONEERTEX Cement Sand Blanket was also reinforced by Glassfiber Geogrid at the bottom and on the top of composite to offer premium flexbile bending strength.
It can also work well for river bank protection or ditch lining for erosion control.
CSB is most cost effective comparing with concrete impregnated canvas or concrete mat cloth.
| PIONEERTEX CEMENT BLANKET (Concrete Erosion Control Mat) GCCM ROLLS TECHNICAL SPECIFICATION | |||||
| PIONEERTEX CEMENT BLANKET GCCM ROLLS was mechanically needle punch bonded composite,consist of cement-sand mix,embedded and fixed between | |||||
| two layers of geotextile, and it is also reinforced by quilt stitched. | |||||
| PROPERTIES OF GEOTEXTILE | TEST METHOD | VALUE | |||
| Carrier layer- PP woven geotextile and geogrid composite | EN ISO 9864 | 230G/M2 | |||
| Cover layer-PET nonwoven geotextile and geogrid composite | EN ISO 9864 | 300G/M2 | |||
| PROPERTIES OF CONCRETE | TEST METHOD | VALUE | |||
| Chemical Composition | N/A | sand-cement mixture+ 2% short fiber | |||
| Density | Typical | 1.5g/cm3 | |||
| Setting start | PN-EN 196-3 | > 120 min | |||
| PROPERTIES OF CSB GCCM | TEST METHOD | VALUE | |||
| Tensile Strength MD/CMD | EN ISO 10319 | > 20 KN/M(+/-10%) | |||
| CBR Puncture Strength | ASTM C 109-02 | >3.0 KN(+/-10%) | |||
| Compressive Strength | ASTM D 8329 | 60MPa | |||
| Bending Strength | EN ISO 12467 | 3-5Mpa | |||
| Water Permeability | EN ISO 12467 | no drop of water | |||
| durability against freeze-thaw | EN ISO 12467 | R>0.75 pass | |||
| durability against heat-rain | EN ISO 12467 | R>0.75 pass | |||
| durability against warm water | EN ISO 12467 | R>0.75 pass | |||
| durability against soak-dry | EN ISO 12467 | R>0.75 pass | |||
| Reaction to fire | EN 12467 | B-S1,dO | |||
| Standard Roll Dimensions | Typical Value | ||||
| Thickness | 5-15mm | ||||
| Width x Length/Roll | 2.0X5M or 2.0X10M or 2.0X20M/ROLL | ||||
How many types of Concrete Erosion Control Mat (Cement Blanket) are we manufacturing?
CECM GCCM is available in 5 weights:
CECM8,
CECM10
CECM12
CECM15.
CECM18
Normally, CECM CEMENT BALANKET color is white or grey as below:

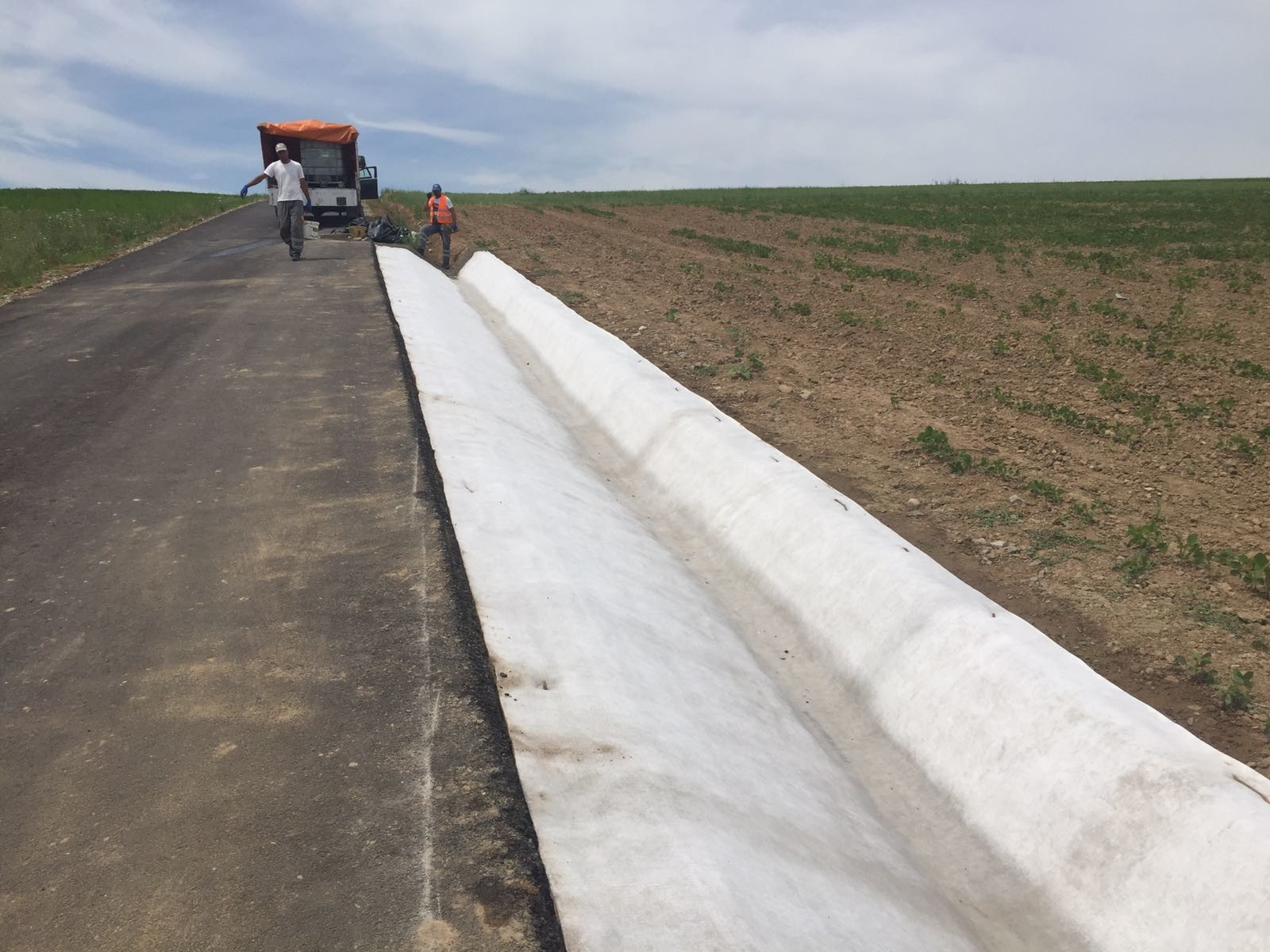

Application:
Ditch line
Slope Protection
