Place of Origin: | CHINA |
---|---|
Brand Name: | pioneertex |
Certification: | ISO9001 |
Model Number: | PET-HS |
Minimum Order Quantity: | 2 Metric Ton |
Price: | 1.95 US$/KG |
Packaging Details: | PE FILM |
Delivery Time: | 2-3WEEKS |
Payment Terms: | T/T |
Supply Ability: | LARGE |
Quantity: | |
---|---|
Material: | Polyester Filament | Color: | White, Grey, Green |
---|---|---|---|
Width: | 2mts, 3mts, 6mts | Weight: | 115gsm-800gsm |
Treatment: | Thermal Bonded Or Calendared | Application: | Separation, Filter And Reinforcement |
High Light: | High Strength Non Woven Geotextile,Pet Filament Non Woven Geotextile,Non Woven Needle Punched Geotextile |
PioneerTEX Polyester Filament High Strength Needle Punch Nonwoven Geotextile
What is High Strength Nonwoven Geotextile?
Our NONWOVEN GEOTEXTILE PioneerFelt is the most popular nonwoven geotextile product on the market today. It leads the way in terms of technical performance and versatility and is used in virtually every civil engineering construction project including:

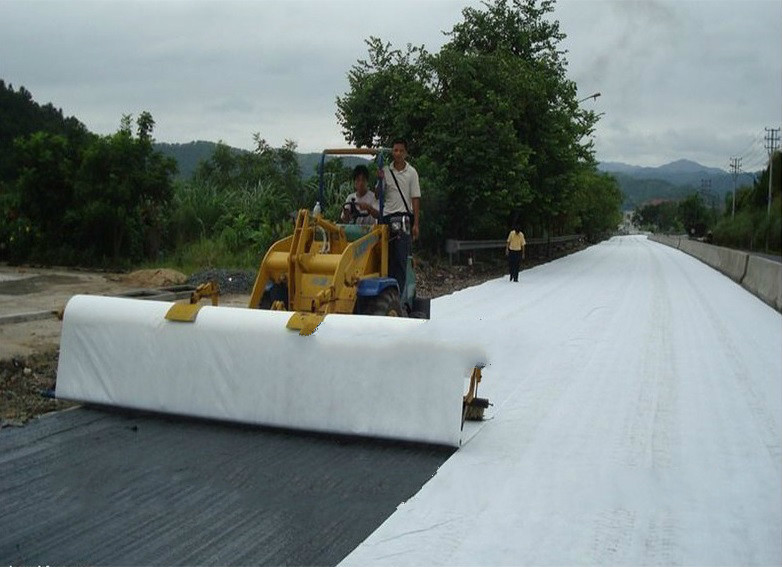

• Roads and railways
• Landfills
• Mining projects
What is PioneerFelt nonwoven geotextiles?

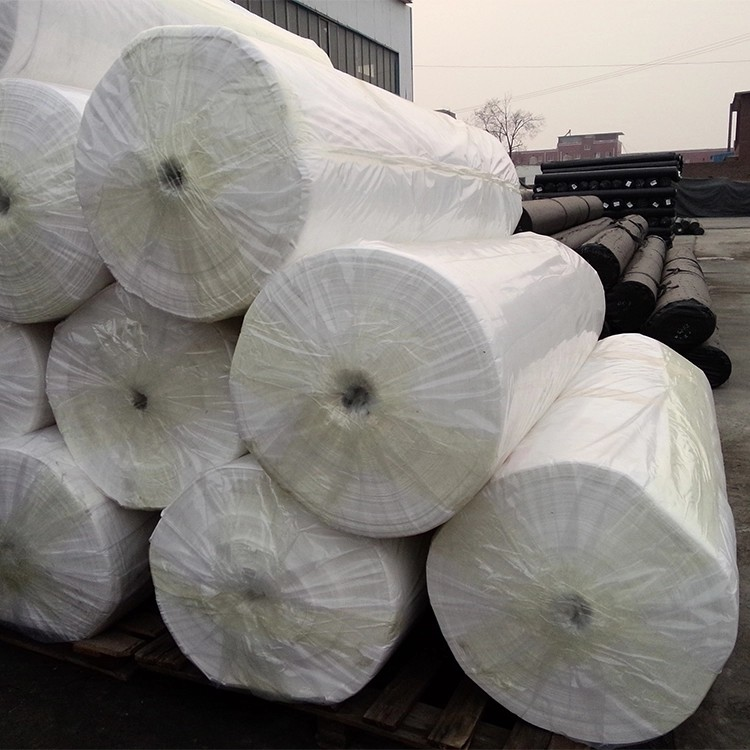

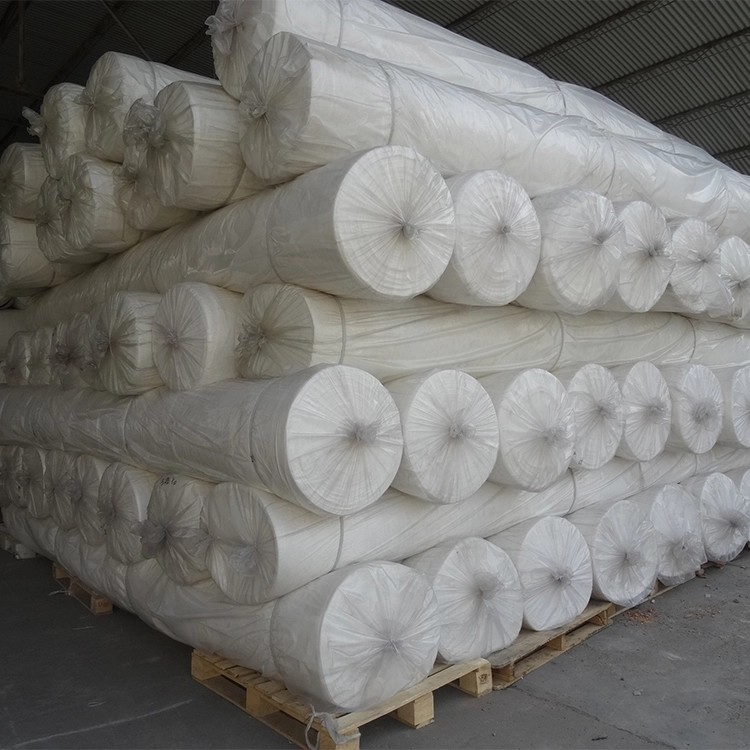

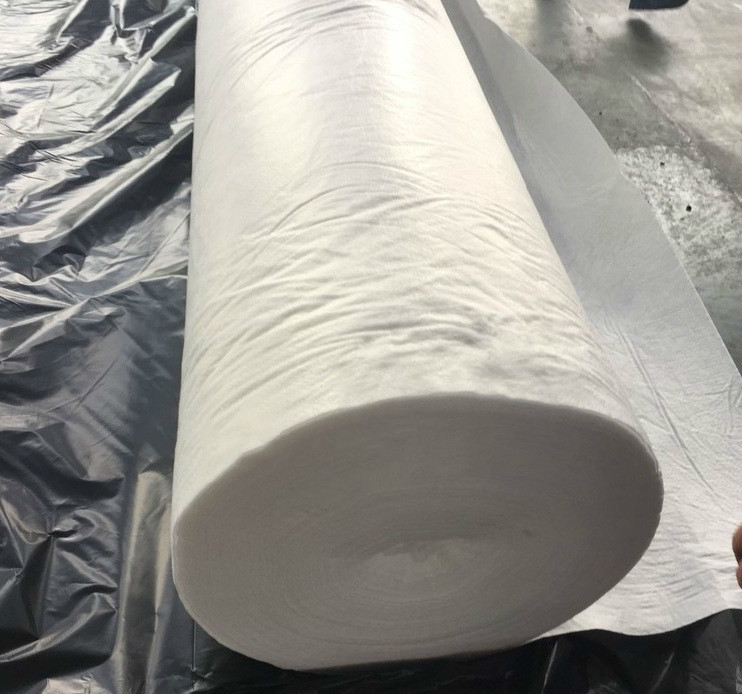

PioneerFelt is a nonwoven needle punched geotextile made from polyester continuous filament in WHITE,Green or GREY color.
It is available in 6m wide rolls and provides separation, filtration, protection or reinforcement functions in engineering projects.
What's PioneerFelt geotextiles Advantage?
PioneerFelt geotextiles provide an effective, economical solution to a range of engineering problems including weak soil, rutted and cracked roads and liquid and gas leaks from landfill sites. All PioneerFelt nonwoven geotextiles are manufactured in CHINA to ISO 9001 standards and is supported by a rigorous QA process.
Where can I get advice about PioneerFelt nonwoven geotextiles?
We provide a high level of technical support for designers, engineers and contractors to ensure your project runs smoothly. Contact us for specification and design advice. We also provide QA manuals and installation tools.
Technical Data Sheet of HS PET Nonwoven Geotextile
MECHANICAL PROTERTIES | UNIT | GTX 110 | GTX 125 | GTX 150 | GTX 200 | GTX 250 | GTX 300 | GTX 350 | GTX 400 | GTX 450 | GTX 500 | GTX 550 | GTX 600 | GTX 800 | |
TENSILE STRENGTH T | KN/M | 8 | 9 | 11 | 16.5 | 20 | 25 | 30 | 33 | 35 | 40 | 44 | 48 | 60 | |
[ASTM D 4595] M | 6.5 | 8 | 10 | 13 | 16 | 20 | 24 | 26 | 30 | 32 | 35 | 38 | 52 | ||
ELONGATION AT BREAK T | % | 80 | 80 | 70 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
[ASTM D 4595] M | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
GRAB STRENGTH T | N | 400 | 500 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 3200 | |
[ASTM D 4632] M | 380 | 480 | 580 | 780 | 980 | 1180 | 1380 | 1580 | 1780 | 1980 | 2100 | 2300 | 3100 | ||
GRAB ELONGATION T | % | 80 | 80 | 70 | 70 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
[ASTM D 4632] M | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
TEAR STRENGTH T | N | 200 | 250 | 300 | 400 | 500 | 600 | 700 | 750 | 800 | 900 | 950 | 1000 | 1500 | |
[ASTM D 4533] M | 150 | 200 | 250 | 350 | 450 | 550 | 650 | 700 | 750 | 850 | 900 | 950 | 1450 | ||
CBR BURST STRENGTH [ASTM D 6241] | KN | 1 | 1.5 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 10 | |
PUNCTURE RESISTANCE [ASTM D 4833] | N | 220 | 275 | 310 | 450 | 520 | 600 | 730 | 880 | 990 | 1050 | 1150 | 1200 | 1600 | |
MULLEN BURST [ASTM D 3786] | MPA | 1 | 1.2 | 1.3 | 1.6 | 2 | 2.6 | 3.1 | 3.8 | 4.4 | 5 | 5.5 | 6 | 6.2 | |
CONE DROP RESISTANCE [BS EN 918] | MM | 34 | 34 | 32 | 29 | 27 | 23 | 20 | 16 | 12 | 11 | 10 | 9 | 9 | |
HYDRAULIC PROPERTIES | |||||||||||||||
FLOW RATE [ASTM D 4491] | L/S/M2 | 200 | 210 | 180 | 150 | 140 | 130 | 120 | 110 | 110 | 100 | 90 | 80 | 80 | |
PERMEABILITY [ASTM 4491] | CM/S | 0.46 | 0.46 | 0.44 | 0.41 | 0.35 | 0.34 | 0.3 | 0.3 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | |
AOS O95 [ASTM D 4751] | MM | 0.13 | 0.12 | 0.12 | 0.11 | 0.11 | 0.1 | 0.1 | 0.09 | 0.09 | 0.08 | 0.07 | 0.065 | 0.065 | |
PHYSICAL IDENTIFICAITON PROPERTIES | |||||||||||||||
THICKNESS [ASTM D5199] | MM | 1.5 | 1.5 | 1.8 | 2.3 | 2.9 | 3.2 | 3.7 | 4.1 | 4.3 | 4.6 | 4.8 | 5 | 5 | |
APPROX LOADING QTY/40HQ | M2 | 63600 | 63600 | 52800 | 39600 | 32400 | 26400 | 22800 | 20400 | 18000 | 15600 | 14400 | 13200 | 11600 |
Remark:
1. Polyester Filament High Strength Nonwoven Geotextile was made of Polyester Filament long fiber;

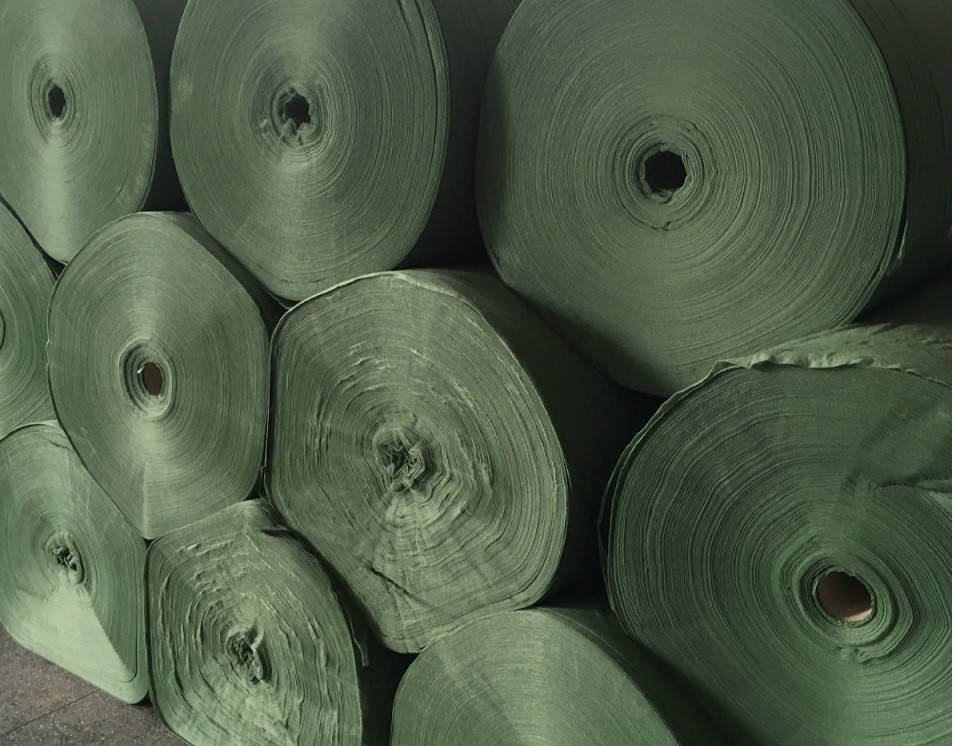

2. Normally, we product white color, If you need Green or Grey color, the price would be higher.
3. Polyester Filament HS Nonwoven has higher strength than traditional staple fiber nonwoven;
4. PET HS Nonwoven can be treated by high temperature calendered to achieve higher strength.
