| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 & ISO14001 |
| Model Number: | GT600 |
| Minimum Order Quantity: | 6 PCS OF BAGS |
| Price: | 500 US$/PC or Depends on the bag size |
| Packaging Details: | PP woven fabric |
| Delivery Time: | 2-3weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pcs of bags/weeks |
| Quantity: | |
|---|---|
| Name: | Geotextile Dewatering Bags Shoreline Protect Embankment | Material: | PP Multifilament |
|---|---|---|---|
| Color: | White Or Black | Fabric Weight: | 600g/m2 |
| Tensile Strength: | 130KN/M | Opening Size: | 0.1-0.2mm |
| High Light: | 130KN M Geotubes,0.2mm Geotubes,Shoreline Geotubes | ||

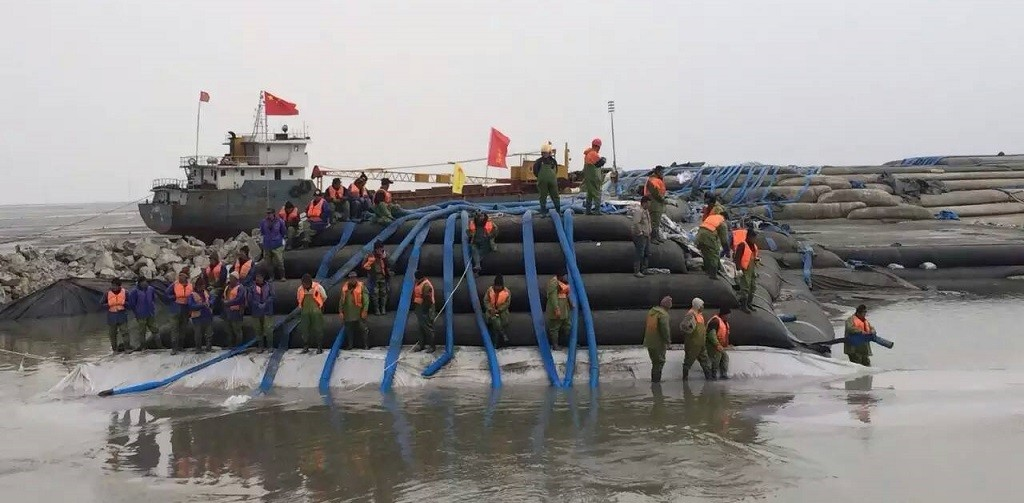

High Strength PP Multifilament Woven Geotube for sea Shoreline protection and embankment, strength up to 130KN/M
Who are we?
We, PioneerTEX is a professional manufacturer of geotu
be and geobag in China.
We could produce many types of geotube and geobag as per customer's project request.
All bags and fabrics could be customized.
PIONEERTEX Geotube & Geobag Product List are as below:
| Quality Code | GT200 | GT300 | GT330D | GT400 | GT500 |
| Mass | 270gsm BLACK | 350gsm BLACK | 350gsm BLACK | 350gsm WHITE | 580gsm BLACK |
| Yarn | PP Monofilament | PP Mono/Tape | PP Monofilament | PP Multifilament | PP Mono/Fabrillated |
| Tensile Strength (MD/CMD) | 54/48 | 50/50 | 50/50 | 70/105 | 75/128 |
| OPENING SIZE O95(mm) | 0.5-0.7 | 0.3-0.5 | 0.6-0.8 | 0.1-0.2 | 0.3-0.5 |
| Application | Dewatering Filter Jumbo Bag | Sludge Dewatering geotube | Sludge Dewatering geotube | Breakwater geotube Sludge dewatering | Sludge Dewatering Geotube |
| Quality Code | GT600 | GT750 | GT800 | GT1000 | Jumbo Sand Bag |
| Mass | 600gsm WHITE | 750gsm BLACK | 850gsm BLACK | 1300gsm BLACK | 380gsm WHITE |
| Yarn | PP Multifilament | PP Mono/Fabrillated | PP Mono/Fabrillated | PP Mono/Fabrillated | PP Woven 230gsm /Nonwoven 150gsm |
| Tensile Strength (MD/CMD) | 150/150 | 120/120 | 130/130 | 200/200 | 50/50 |
| OPENING SIZE O95(mm) | 0.1-0.2 | 0.3-0.5 | 0.3-0.5 | 0.4-0.6 | 0.1-0.2 |
| Application | Breakwater Geotube | Breakwater Geotube | Breakwater Geotube | Breakwater Geotube | Breakwater geotube Anti-scour mattress |
| 1. GT200 fabric can work as Dewatering Filter Jumbo Bag. | |||||
| 2. GT400 Geotube can work as Breakwater Geotube anchor tube; | |||||
| 3. GT500,GT600,GT750,GT800 and GT1000 Geotube can work as Breakwater Geotube for shoreline protection. | |||||
What is a Geotube?
PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.
How do a PioneerTEX Geotube work?
Gravimetric drainage of the sludge is accompanied by a volume reduction.
Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.
Is Polymer Flocculant Necessary for Dewatering?
Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.
Can we do a trial on the geotube before purchasing?
Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.
What is GT600 geotube?

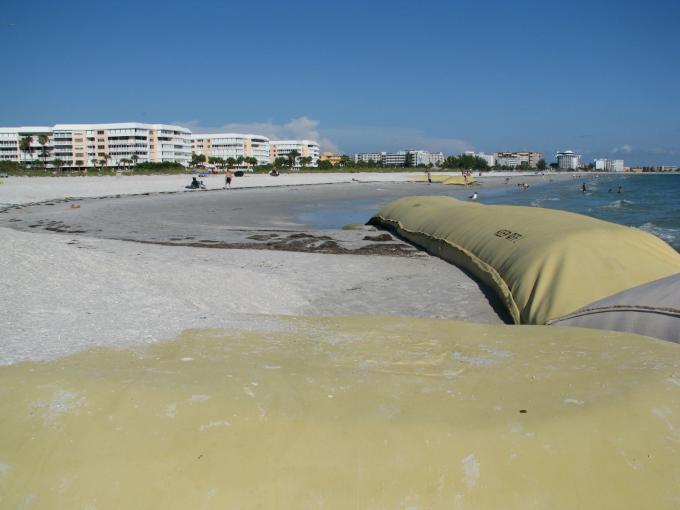

PioneerTex Dewatering Breakwater Geotube-PioTube GT600 was designed and developed for sea shoreline protection project or embankment. It was made of PP multifilament yarn. And its flow rate is also good because of special fabric structure. Since its fabric weight is less than standard GT1000 fabric, Max. Filling height of geotube is not more than 2.2mts.
| MATERIAL: PP MULTIFILAMENT WOVEN GEOTEXTILE | ||||
| APPLICATION: BREAKWATER GEOTUBE FOR SHORELINE. | ||||
| QUALITY CODE: PioneerTEX-GT600 | ||||
| ITEM | Test Method | Unit | Mean Value | |
| MD | XD | |||
| Tensile Strength | ASTM D 4595 | KN/M | 130 | 130 |
| Elongation at break | ASTM D 4595 | % | 25 | 25 |
| Tear Strength | ASTM D 4533 | N | 1300 | 2300 |
| CBR Puncture Strength | ASTM D 6241 | KN | 18 | |
| Seaming strength | ASTM D 4844 | KN/M | 70 | |
| Flow rate | ASTM D 4491 | L/min/M2 | 450 | |
| Permeability | ASTM D 4491 | cm/sec | 3.00E-02 | |
| Opening Size(O90) | ASTM D 4491 | mm | 0.12 | |
| Mass Per unti area | EN ISO 10319 | GSM | 600 | |
