| Place of Origin: | Jiangsu,China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 & ISO14001 |
| Model Number: | W-Drainage |
| Minimum Order Quantity: | 2000 sqm |
| Price: | 4.05 US$/SQM |
| Packaging Details: | PP WOVEN FABRIC |
| Delivery Time: | 2-3WEEKS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000SQM/WEEK |
| Quantity: | |
|---|---|
| Name: | 3D PP Wave Shaped Core Drainage Sheet Geocomposite | Core Material: | 100% PP |
|---|---|---|---|
| Nonwoven: | PP Or PET Needle Punch Nonwoven Geotex | Width: | 2.0mts |
| Thickness: | 8mm,10mm,15mm,20mm | Color: | White Nonwoven, Black Core |
| High Light: | Wave Shaped Geocomposite Sheet Drain,Shockproof Geocomposite Sheet Drain,Soccer Field Geocomposite Sheet Drain | ||
Wave shaped drain core geocomposite drainage sheet
for sports field artificial grass base to offer drain and shockproof

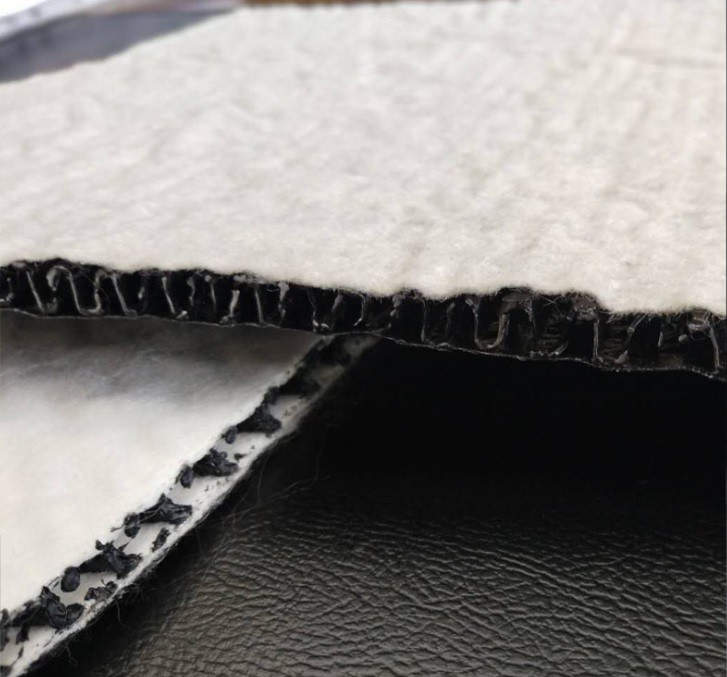

WaveDrain drainage geocomposites consist of a wave-extruded monofilament drainage core and at least one PioneerTEX nonwoven geotextile as separation / filtration layer. All components are made of polypropylene and are firmly bonded with each other.
WaveDrain drainage applications
Advantages of WaveDrain drainage geocomposites

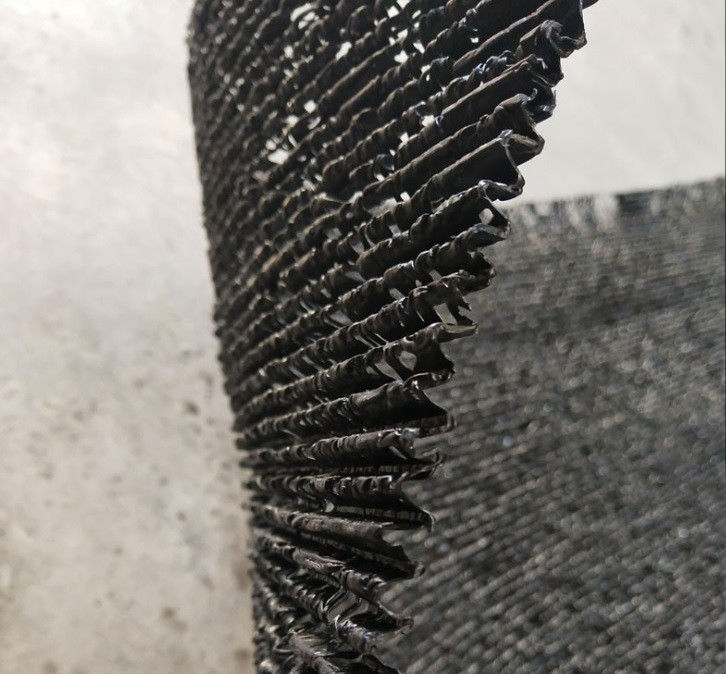

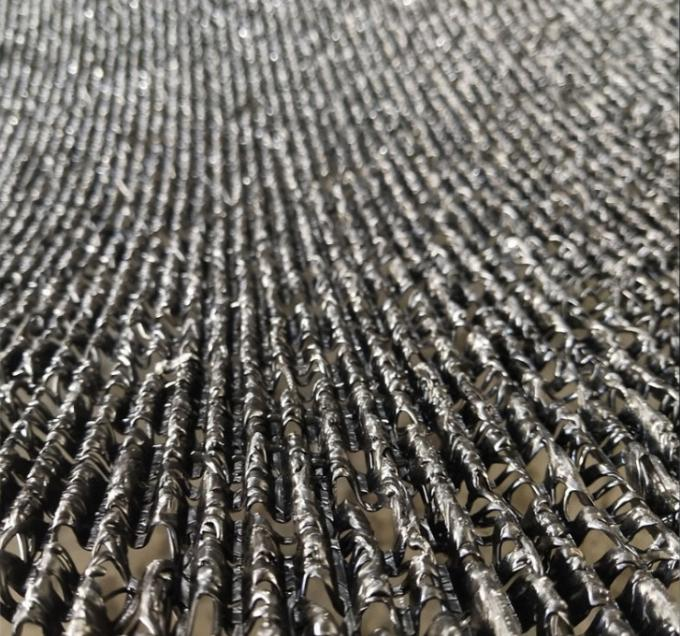

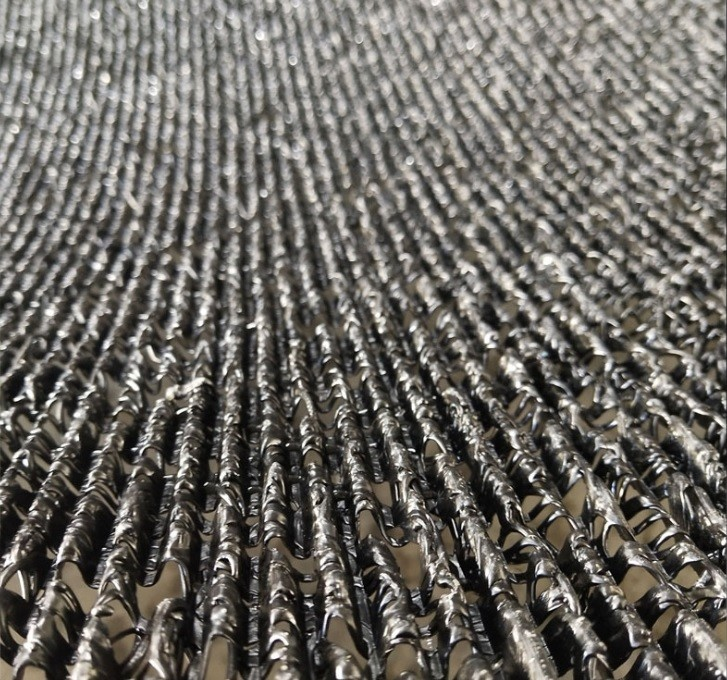

Special Advantage 1: WaveDrain Its wave structure of the drainage core ensures a high hydraulic capacity in the long term.
Special Advantage 2: WaveDrain is economic and efficient :
WaveDrain replaces mineral material equivalently at significantly reduced work assignment and machinery application due to easier transportation and installation.
Special Advantage 3: Thermally fused components for high shear resistant bond
WaveDrain geocomposites achieve high inner shear strength due to thermal fusion of the geotextile components to the drainage core. This shear resistant bond also simplifies installation of geocomposite panels.
WaveDrain mats – the economic and efficient water and gas drainage
WaveDrain is used extensively to drain water or gas in various applications. In multi-layered sealing systems, PioDrain fulfills multiple functions.Three functions in one product – Filtration, protection and drainage
WaveDrain safely discharges seepage water of the covering soil layer. Additionally, it also filters the soil by means of the firmly attached nonwoven cover geotextile.Sealing elements such as geomembranes are protected by PioDrain against coarse particles of the adjacent soils.
WaveDrain drainage mats – Economic and efficient

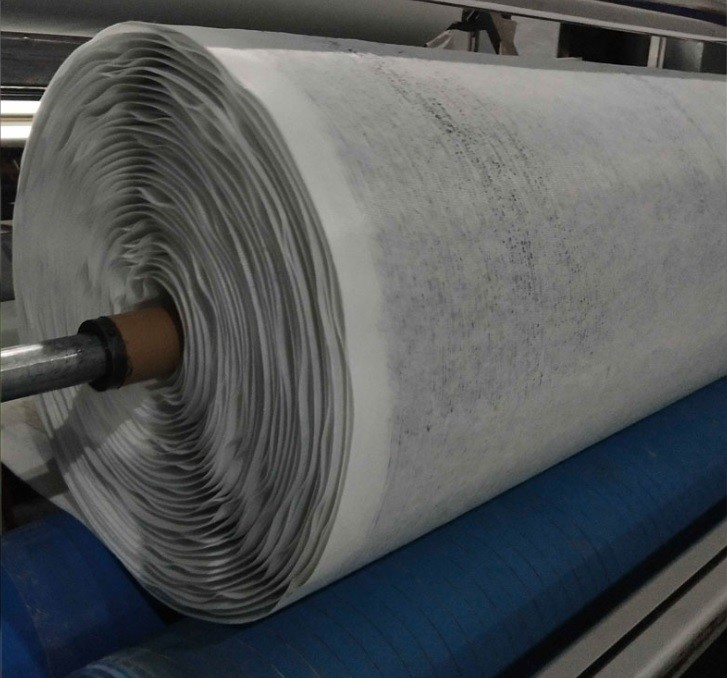

The 1.90m or 3.80m wide and typically 35m or 70m long PioDrain rolls are quick and easy to install. The pre-manufactured overlap configuration of PioDrain provides a simple and quick butt jointing of the geocomposite panels in the longitudinal direction.
The use of WaveDrain in earth construction requires less excavation of in-situ material and, in the case of a landfill liner, the containment volume is increased.
Using WaveDrain drainage mats saves time and natural resources since 10,000m² of the PioDrain system can replace the extraction, transport and installation of approximately 3,000m³ of granular drainage material.
PioneerTEX Wave Shaped Core Composite Dainage Sheet Specificaiton
for Soccer Field Dainage Projects:
| ITEM | W-DRAIN | W-DRAIN | W-DRAIN | W-DRAIN |
| W-Drain Thickness(mm) | 8 mm | 10mm | 15mm | 20mm |
| Width(mm) | 2000 | 2000 | 2000 | 2000 |
| Nonwoven Geotextile(g/m2) | 250 | 250 | 250 | 250 |
| Water Flow(m3/s.mi=0.95,@100kPa | 0.82×10-3 | 2.72×10-3 | 4.36×10-3 | 5.5×10-3 |
| Packaging (Long×Wide) | 70×2 | 50×2 | 30×2 | 25×2 |
| Name: | 3D PP Wave Shaped Core Drainage Sheet Geocomposite | Core Material: | 100% PP |
|---|---|---|---|
| Nonwoven: | PP Or PET Needle Punch Nonwoven Geotex | Width: | 2.0mts |
| Thickness: | 8mm,10mm,15mm,20mm | Color: | White Nonwoven, Black Core |
| High Light: | Wave Shaped Geocomposite Sheet Drain,Shockproof Geocomposite Sheet Drain,Soccer Field Geocomposite Sheet Drain | ||
Wave shaped drain core geocomposite drainage sheet
for sports field artificial grass base to offer drain and shockproof
WaveDrain drainage geocomposites consist of a wave-extruded monofilament drainage core and at least one PioneerTEX nonwoven geotextile as separation / filtration layer. All components are made of polypropylene and are firmly bonded with each other.
WaveDrain drainage applications
Advantages of WaveDrain drainage geocomposites
Special Advantage 1: WaveDrain Its wave structure of the drainage core ensures a high hydraulic capacity in the long term.
Special Advantage 2: WaveDrain is economic and efficient :
WaveDrain replaces mineral material equivalently at significantly reduced work assignment and machinery application due to easier transportation and installation.
Special Advantage 3: Thermally fused components for high shear resistant bond
WaveDrain geocomposites achieve high inner shear strength due to thermal fusion of the geotextile components to the drainage core. This shear resistant bond also simplifies installation of geocomposite panels.
WaveDrain mats – the economic and efficient water and gas drainage
WaveDrain is used extensively to drain water or gas in various applications. In multi-layered sealing systems, PioDrain fulfills multiple functions.Three functions in one product – Filtration, protection and drainage
WaveDrain safely discharges seepage water of the covering soil layer. Additionally, it also filters the soil by means of the firmly attached nonwoven cover geotextile.Sealing elements such as geomembranes are protected by PioDrain against coarse particles of the adjacent soils.
WaveDrain drainage mats – Economic and efficient
The 1.90m or 3.80m wide and typically 35m or 70m long PioDrain rolls are quick and easy to install. The pre-manufactured overlap configuration of PioDrain provides a simple and quick butt jointing of the geocomposite panels in the longitudinal direction.
The use of WaveDrain in earth construction requires less excavation of in-situ material and, in the case of a landfill liner, the containment volume is increased.
Using WaveDrain drainage mats saves time and natural resources since 10,000m² of the PioDrain system can replace the extraction, transport and installation of approximately 3,000m³ of granular drainage material.
PioneerTEX Wave Shaped Core Composite Dainage Sheet Specificaiton
for Soccer Field Dainage Projects:
| ITEM | W-DRAIN | W-DRAIN | W-DRAIN | W-DRAIN |
| W-Drain Thickness(mm) | 8 mm | 10mm | 15mm | 20mm |
| Width(mm) | 2000 | 2000 | 2000 | 2000 |
| Nonwoven Geotextile(g/m2) | 250 | 250 | 250 | 250 |
| Water Flow(m3/s.mi=0.95,@100kPa | 0.82×10-3 | 2.72×10-3 | 4.36×10-3 | 5.5×10-3 |
| Packaging (Long×Wide) | 70×2 | 50×2 | 30×2 | 25×2 |
