Defensive Barrier
PIONEERTEX
7314310000

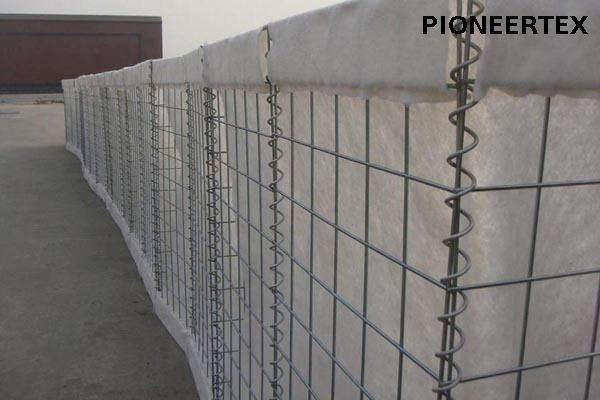

PIONEERTEX Defensive barrier can also be used to defend against explosions, block shrapnel, resist current erosion, etc., providing effective protective performance civilian, disaster relief, etc. Compared with the reinforced concrete defensive bastion, it has the advantages of light weight, easy loading and unloading, recyclable and reusable.Vegetation can be established on the top of defensive barrier. With vegetation, it is esthetically pleasing and environmental friendly.
Advantages :
Easy installation, minimal training requirement for installation
Quick and efficient installation, ten times faster than traditional sandbags
High tensile and anti-impact capability
Long life for regular use
Can be connected together to any length, and can be stacked for additional height
Filling material is an easily-obtained mix of sand, earth or small stones
Low transportation cost, can be shipped and stored as a flat-pack unit
Low labor cost, all products are pre-assemble and easy to install
Green solution for environment, with capability of natural vegetation on surface compared to traditional gabion
Application :
Water courses
Coastal defenses
Scour protection
Emergency flood deployment
Erosion and flood control
Slope & embankment protection
Retaining walls
PIONEERTEX Defensive Barrier Specifications | ||||
Welded Mesh Part | ||||
Height | Width | Length | Wire Thickness | Mesh Opening |
610 | 610 | 1210 | 3.0MM | 76.2*76.2 |
610 | 610 | 3050 | ||
1000 | 1000 | 10000 | ||
1000 | 760 | 9140 | ||
1000 | 1500 | 10000 | ||
1370 | 1060 | 10000 | ||
1370 | 1220 | 10000 | ||
2210 | 2130 | 27740 | ||
2120 | 1520 | 30500 | ||
Wire Type: Zinc/Aluminium Coated Wire: 3.0MM; 3.5MM; 4.0MM | ||||
Wire Strength: Tensile Strength: 540-770Mpa | ||||
NONWOVEN GEOTEXTILE PART | ||||
WEIGHT: 200GSM OR 300GSM | ||||
COLOR: BEIGE OR GREEN OR WHITE | ||||
