GABION
PIONEERTEX
7314190000
| TECHNICAL SPECIFICATIONS OF PIONEERTEX GABION BOX OR GABION MATTRESS | |||||

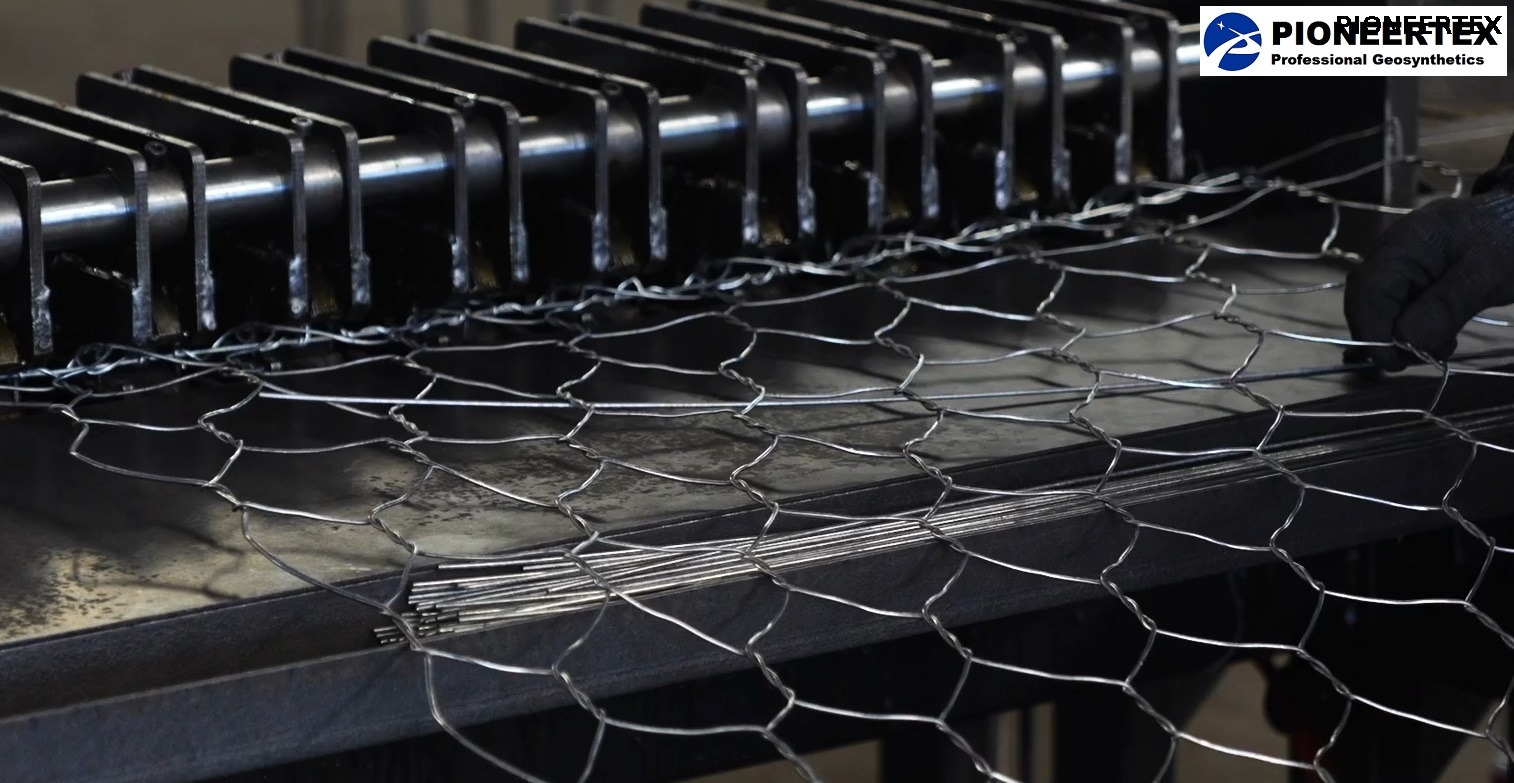

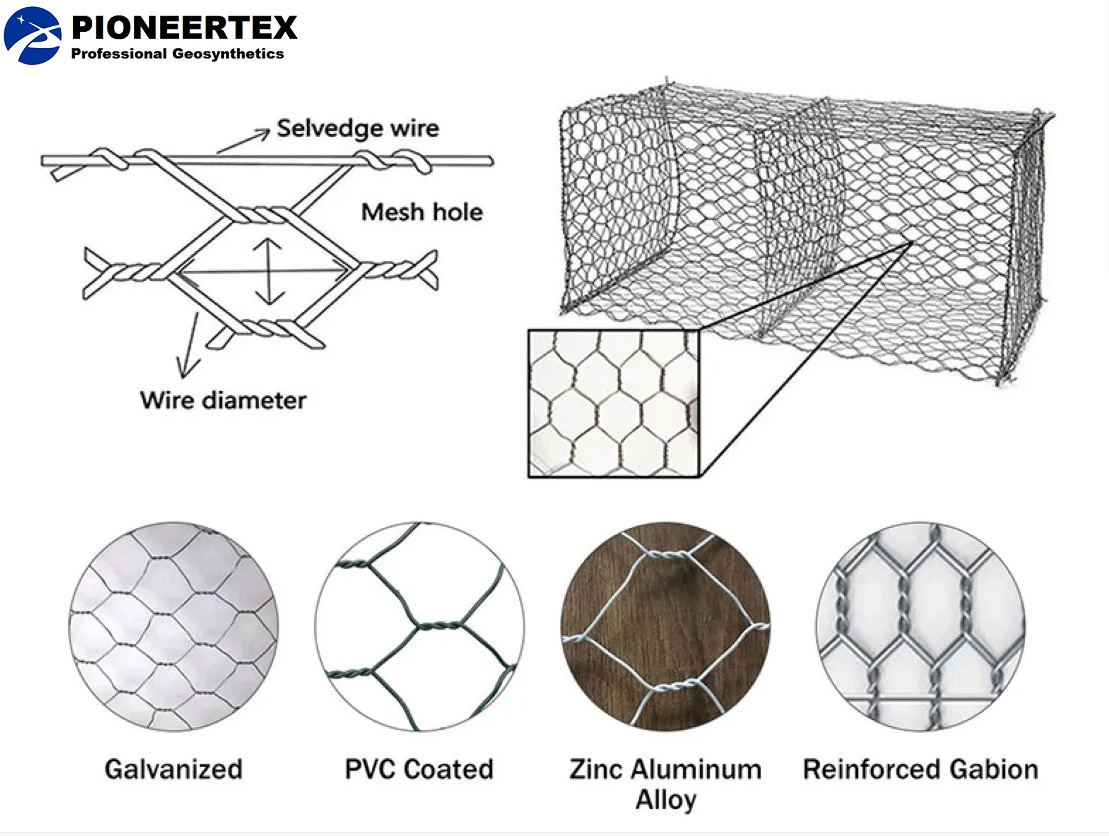

PIONEERTEX Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. | |||||
| Sizes For Gabion Box And Gabion Mattress | |||||
| L (m) | W (m) | H (m) | Number of Cells | Remark | |

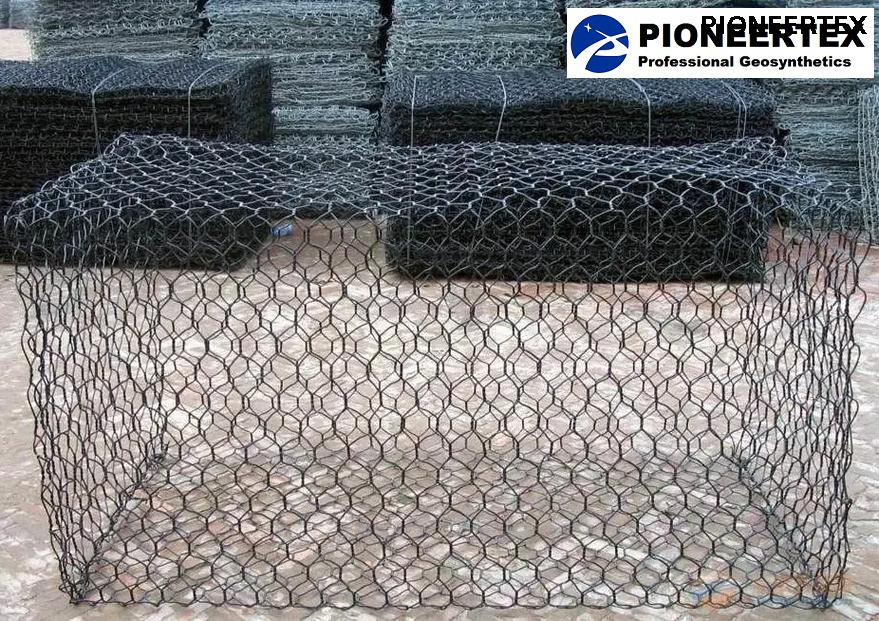

| 2 | 1 | 1 | 2 | Gabion Box | |
| 3 | 1 | 1 | 3 | ||
| 4 | 1 | 1 | 4 | ||
| 2 | 1 | 0.5 | 2 | Gabion Mattress | |
| 3 | 1 | 0.5 | 3 | ||
| 4 | 2 | 0.3 | 4 | ||
| 6 | 2 | 0.3 | 6 | ||

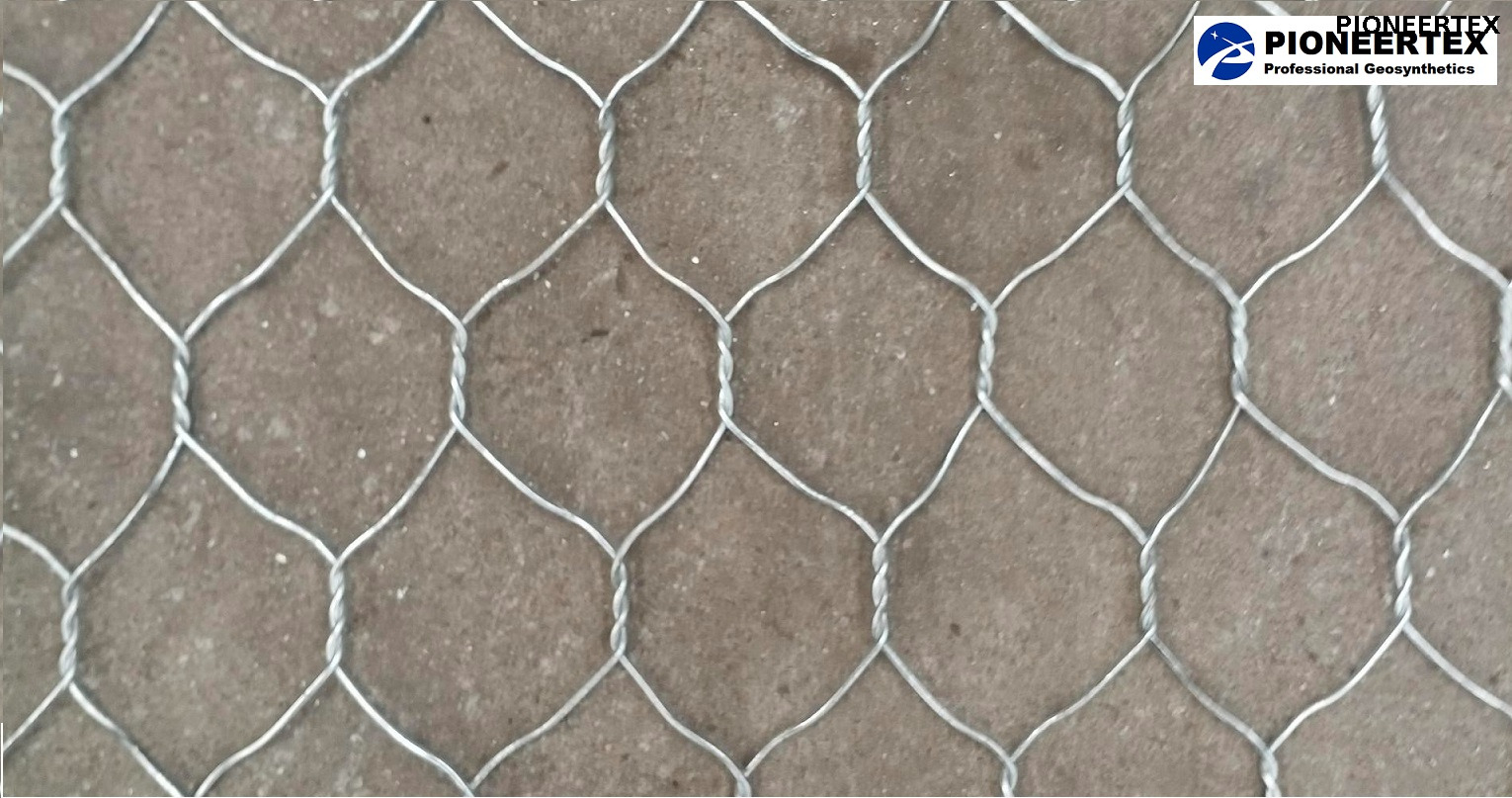

| Standard Mesh Wire | |||||
| Mesh Type | Mesh Size (mm) | Mesh Size Tolerance | Mesh Wire Diameter (mm) | ||
| 8x10 | 80X90 | ±10% | 2.70, 3.00mm | ||
| 6x8 | 60X80 | ±10% | 2.20mm | ||
| Standard Wire Diameters | |||||
| Wire Diameter ø mm | 2.2 | 2.7 | 3 | 3.4 | 3.8 |
| Wire Tolerance (±) ø mm | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Min. Qty of Zinc gr/m2 | 214 | 244 | 259 | 259 | 275 |
| Type of Galvanizing | Wire diameter | Zinc Content | Tensile Strength | Elongation | Expected Rust Period |
| Electro-Galvanized | 2.0 mm-4.0 mm | 5-10 g/m2 | 350-500 N/mm² | ≥12% | 1-6 months |
| Hot-dip galvanized | 2.0 mm-4.0 mm | 30-50 g/m2 | 350-500 N/mm² | ≥12% | 2-5 years |
| Heavy galvanized | 2.0 mm-4.0 mm | ≥215 g/m2 | 350-500 N/mm² | ≥12% | More than 20 years |
