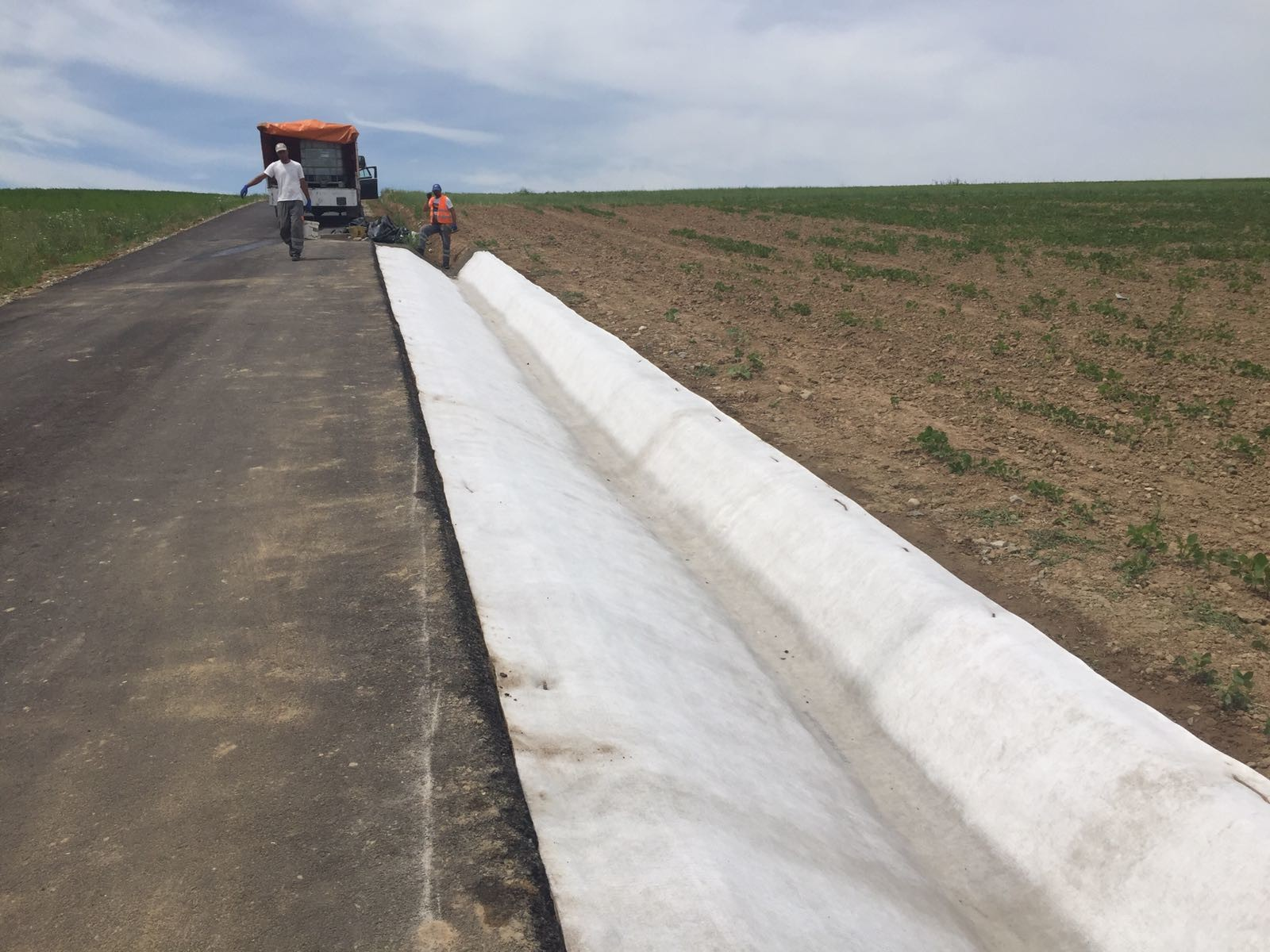

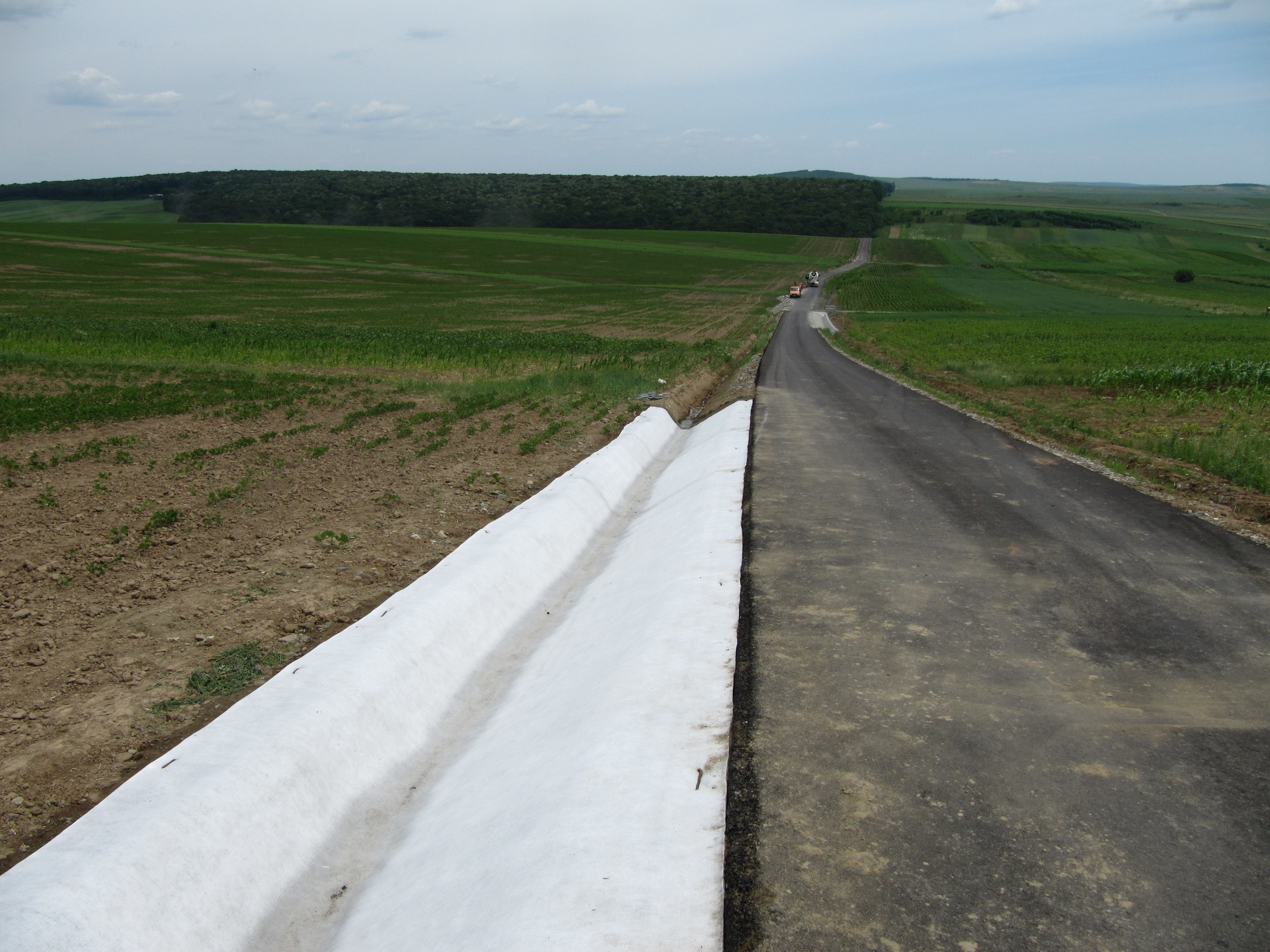

Concrete Erosion Control Mat GCCM Rolls for Slope Protection Or Ditch Lining

Place of Origin:	Jiangsu, China
Brand Name:	PIONEERTEX
Certification:	ISO9001 & ISO14001
Model Number:	8kgs/m2, 11kgs/m2, 14kgs/m2, 18kgs/m2

Minimum Order Quantity:	1600 Square Meter/Square
Price:	$15.00 - $18.00 / Square Meter
Packaging Details:	One layer of waterproof PE film inside, and one lay of THICK PE Film outside.
Delivery Time:	3-4WEEKS
Payment Terms:	L/C, T/T
Supply Ability:	2000 Square Meter/Square Meters per Week

Warranty:	25 Years	After-sale Service:	Online Technical Support
Project Solution Capability:	Graphic Design	Product Name:	Geosyntheic Cementious Composite Mat GCCM
Color:	White Or Green	Powder Material:	Cement And Sand And Special Additive Powder
Geotextile:	Polyester Or PP Geocomposite	Backing:	Geomembrane Backing Or Note
Brand:	PIONEERTEX	Key Word:	CONCRETE MAT CEMENT CLOTH
Certificate:	SGS	Thickness:	8MM-13mm
TENSILE STRENGTH:	10kn/m	Port:	NANJING Port
High Light:	15kgs/sqm concrete mat cloth roll , 8kgs/sqm concrete mat cloth roll , concrete mat cloth roll sgs

We, PIONEERTEX have three types of GCCM products to offer:

1. Concrete Mat Cloth(CMC) GCCM Rolls( meet ASTM D8364):

CMC was reinforced by 3D spacer fabric.

CMC was backed with HDPE geomembrane to ensure waterproof.

CMC was not in conflict with CCUK’s patent. PioneerTEX can export CMC worldwide.

CMC Max Width: 2.1mts.

2. Cementex GCCM (Cement Cloth) rolls, cement cloth quality is as good as CMC.

Cementex GCCM=CMC without HDPE geomembrane backing;

Cementex price is better than CMC rolls.

Cementex GCCM Rolls Max.Width: 2.1mts.

3. Cement-Sand Blanket (CSB) GCCM rolls:

CSB is without HDPE geomembrane backing;

CSB is without 3D spacer fabric reinforcement;

CSB is with quilted stitch bonded together to ensure good integrity.

CSB is with geogrid reinforcement to ensure good compressive strength as Tiltex.

CSB Max. Width: 4mts.

PIONEERTEX CEMENT-SAND BLANKET (CSB) GCCM ROLLS TECHNICAL SPECIFICATION

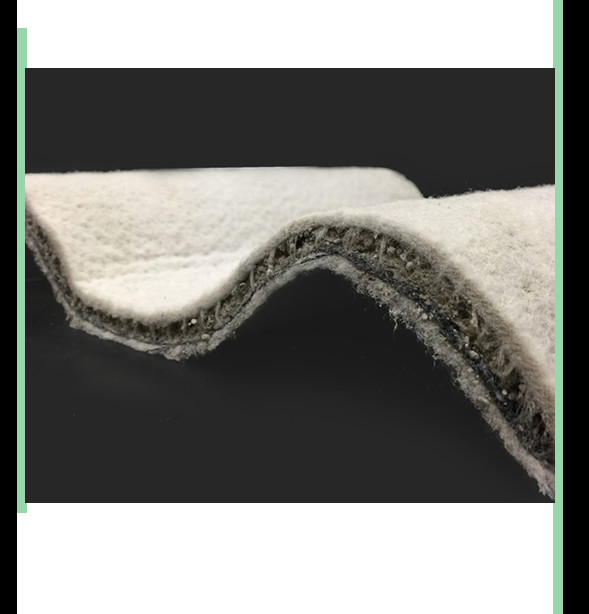

PIONEERTEX CEMENT-SAND BLANKET GCCM ROLLS was mechanically needle punch bonded composite,
consist of cement-sand mix,embedded and fixed between two layers of geotextile, and it is also reinforced
by quilt stitched.

PROPERTIES OF GEOTEXTILE	TEST METHOD	VALUE
Carrier layer- PP woven geotextile and geogrid composite	EN ISO 9864	230G/M2
Cover layer-PET nonwoven geotextile and geogrid composite	EN ISO 9864	300G/M2
PROPERTIES OF CONCRETE	TEST METHOD	VALUE
Chemical Composition	N/A	sand-cement mixture+ 2% short fiber
Density	Typical	1.5g/cm3
Setting start	PN-EN 196-3	> 120 min
PROPERTIES OF CSB GCCM	TEST METHOD	VALUE
Tensile Strength MD/CMD	EN ISO 10319	> 20 KN/M(+/-10%)
CBR Puncture Strength	ASTM C 109-02	>3.0 KN(+/-10%)
Compressive Strength	EN ISO 14617	40MPa
Bending Strength	EN ISO 12467	3-5Mpa
Water Permeability	EN ISO 12467	no drop of water
durability against freeze-thaw	EN ISO 12467	R>0.75 pass
durability against heat-rain	EN ISO 12467	R>0.75 pass
durability against warm water	EN ISO 12467	R>0.75 pass
durability against soak-dry	EN ISO 12467	R>0.75 pass
Reaction to fire	EN 12467	B-S1,dO
Standard Roll Dimensions	Typical Value
Thickness	5-15mm
Width x Length/Roll	2.0X5M or 2.0X10M or 2.0X20M/ROLL
