How To Stabilize River Banks with PIONEERTEX Geotextiles for Erosion Control?

How to Stabilize River Banks with PIONEERTEX Geotextiles For Erosion Control?

Stabilizing river banks with geotextiles involves using permeable synthetic fabrics to reinforce soil, control erosion, and support vegetation or hard structures. Here's a structured approach:

Core Functions of Geotextiles

1. Separation: Prevents soil layers from mixing (e.g., keeping gravel from sinking into clay).

2. Filtration: Allows water to pass while trapping soil particles.

3. Reinforcement: Adds tensile strength to weak soils.

4. Protection: Shields underlying materials (e.g., geomembranes).

Common Stabilization Methods Using Geotextiles

1. Geotextile Revetments

(Such as PIONEERTEX PET HS Nonwoven Geotextile):

  - Installation: Layer geotextile fabric over the bank slope.

  - Cover: Top with rock riprap, concrete blocks, or gabions.

  - Purpose: Fabric prevents soil loss while allowing drainage; armor absorbs water energy.

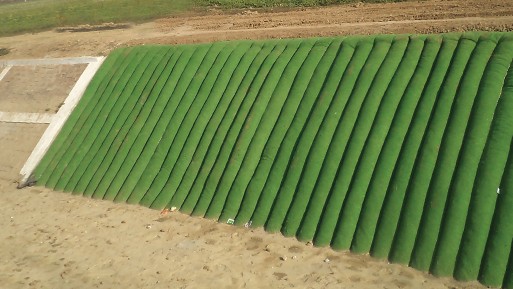

2. Geotextile Mattresses

(Such as PIONEERTEX Sand Filled Mattress, Fabric Forms Concrete Revetment mattress):

  - Structure: Double-layer geotextile "bags" filled with soil or concrete.

  - Placement: Anchored to the bank; acts as a flexible erosion barrier.

  - Vegetation: Can be planted through openings for added stability.

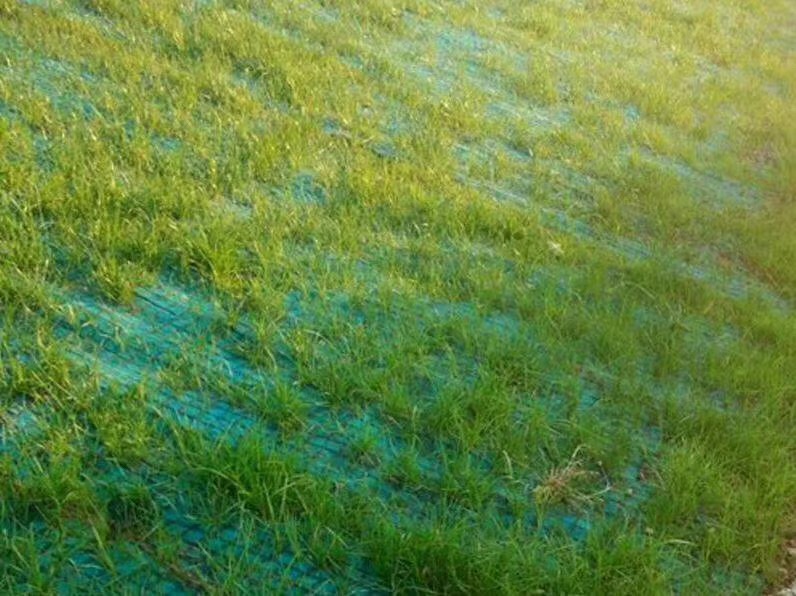

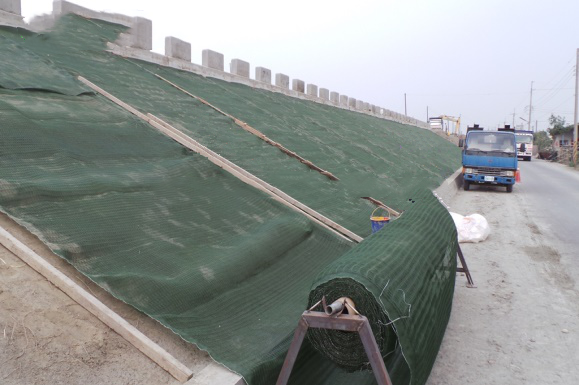

3. Vegetated Geotextile Systems

(Such as PIONEERTEX Coconut fiber erosion control blanket, HDPE ECM):

  - Technique: Wrap geotextiles around soil/root balls of live plants (e.g., willow stakes).

  - Growth: Roots penetrate the fabric, creating a reinforced "living wall."

  - Best For: Low-flow areas where ecological restoration is a priority.

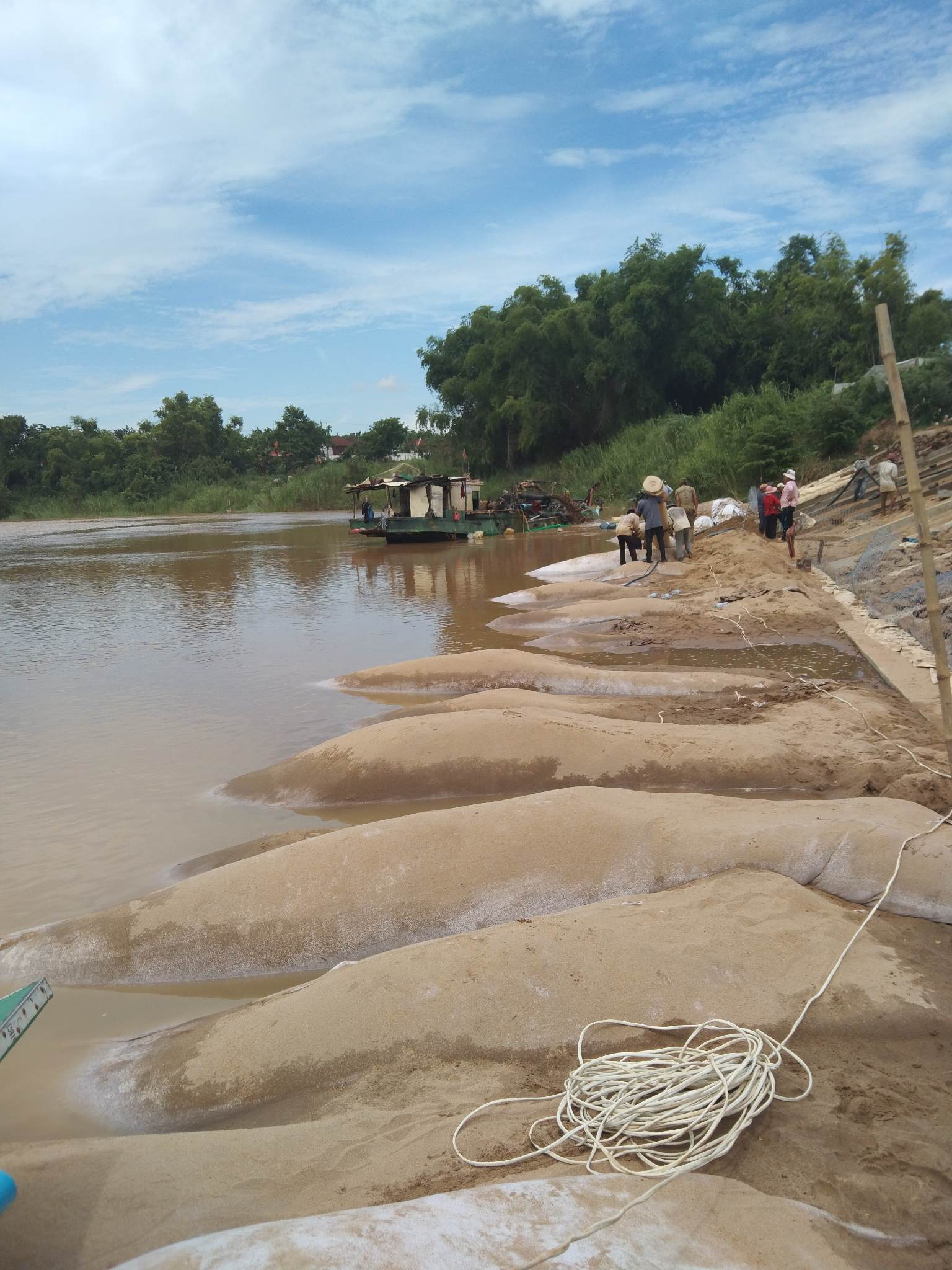

4. Geotextile Tubes/Containers:

  (Such as PIONEERTEX GEOTUBE, Geotube Sand Filled Mattress, Geotextile Sand container

   And Gabion box with Nonwoven interlining)

  - Use: Stacked tubes filled with sand/slurry to form retaining walls.

  - Application: Base protection for steep banks or emergency repairs.

Critical Design & Installation Steps

1. Site Assessment:

  - Analyze soil type, bank slope, flow velocity, and erosion patterns.

  - Consult hydrology reports to understand flood risks.

2. Geotextile Selection:

  - Woven: High strength (ideal for reinforcement under heavy armor).

  - Non-woven: Better filtration/drainage (suited for vegetative systems).

  - Key Properties: UV resistance, puncture strength, and permeability (match to soil gradation).

3. Installation Best Practices:

  - Preparation: Excavate unstable soil; compact subgrade.

  - Placement: Overlap seams (min. 12–24 inches), anchor tops with trenches.

  - Cover: Immediately protect from UV exposure (e.g., with rock/soil).

4. Integration with Vegetation:

  - Use biodegradable coir or jute geotextiles for temporary support until plants establish.

  - Combine with deep-rooted species (e.g., grasses, shrubs) for long-term stability.

Advantages & Limitations

- Pros: Cost-effective, flexible, eco-friendly (vs. concrete), and adaptable.

- Cons: Vulnerable to damage during installation; improper design can lead to failure.

Key Considerations

- Hydraulic Suitability: Ensure fabric permeability exceeds soil’s to prevent pore pressure buildup.

- Durability: Select fabrics with ≥100-year design life in submerged conditions.

- Expert Involvement: Engage geotechnical engineers for site-specific design.

Always combine geotextiles with complementary measures (e.g., toe protection with riprap, vegetative cover). For severe erosion, hybrid solutions (geotextiles + hard armor) are most effective. Professional assessment is crucial—improper use can accelerate erosion!
